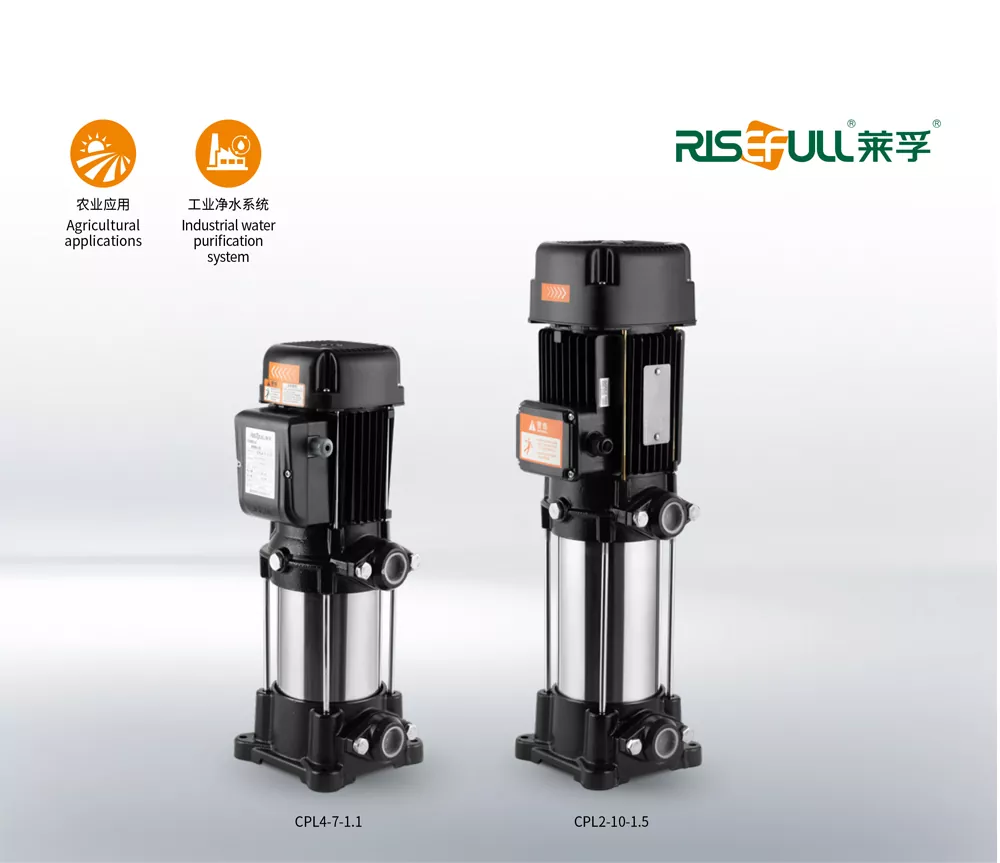

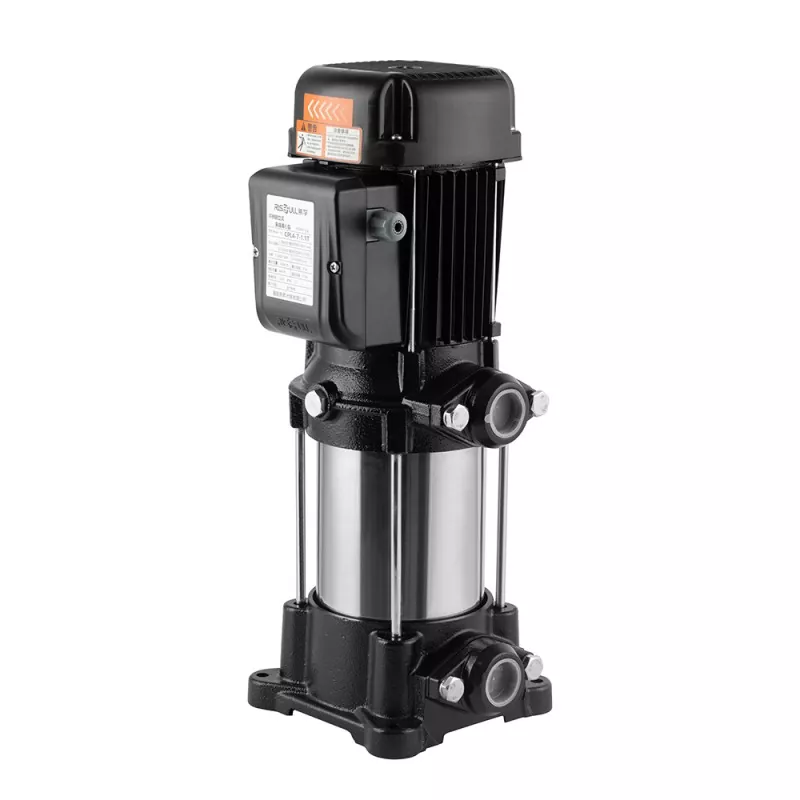

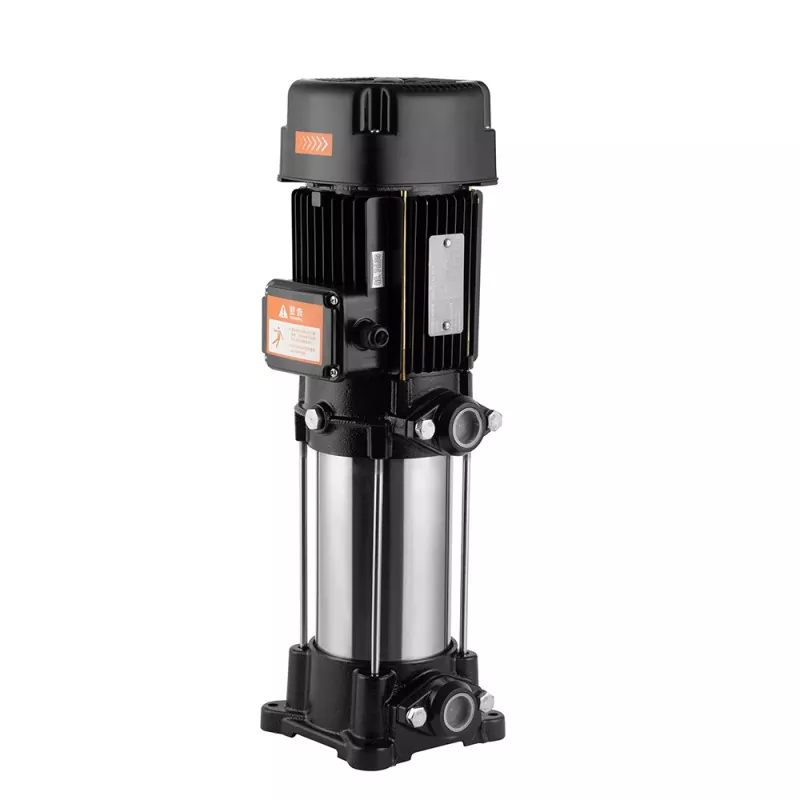

Rated Flow 4 M³/h Direct Connection Stainless Steel Fertilizer Machine Pump

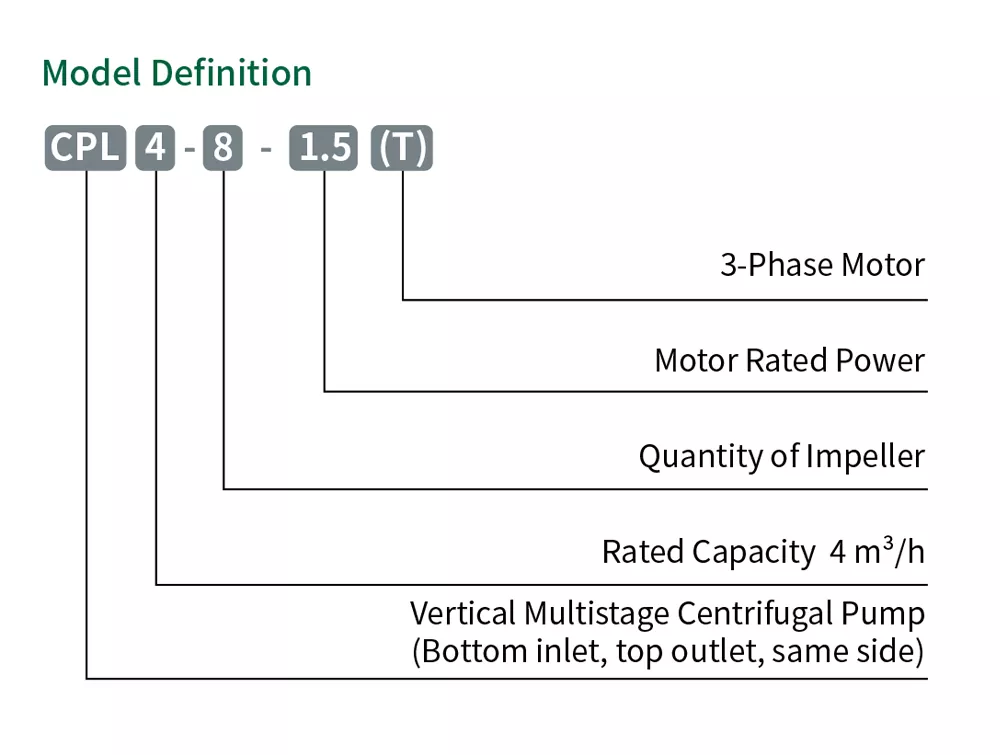

Model:CPL4-7-1.1/CPL4-8-1.5/CPL4-9-1.6/CPL4-10-1.8/CPL4-11-1.9/CPL4-12-2.0/CPL4-13-2.2

Risefull is a an innovative and professional water pump manufacturer and supplier in China. We have been specialized in electric water pump for many years. With years of experience in household water pump ,industrial water pump and pump accessories ,Risefull water pump can meet many applications .For the household pump ,we can cover many applications such as ,pipeline booster ,downward booster ,water tower filling ,shallow well pumping and deep well pump .For the industrial water pump ,we can supply centrifugal pump ,peripheral water pump,self-priming peripheral water pump ,high temperature water pump ,self-priming jet pump ,GD in line pump,stainless steel multistage centrifugal water pump .

Send Inquiry

Product Description

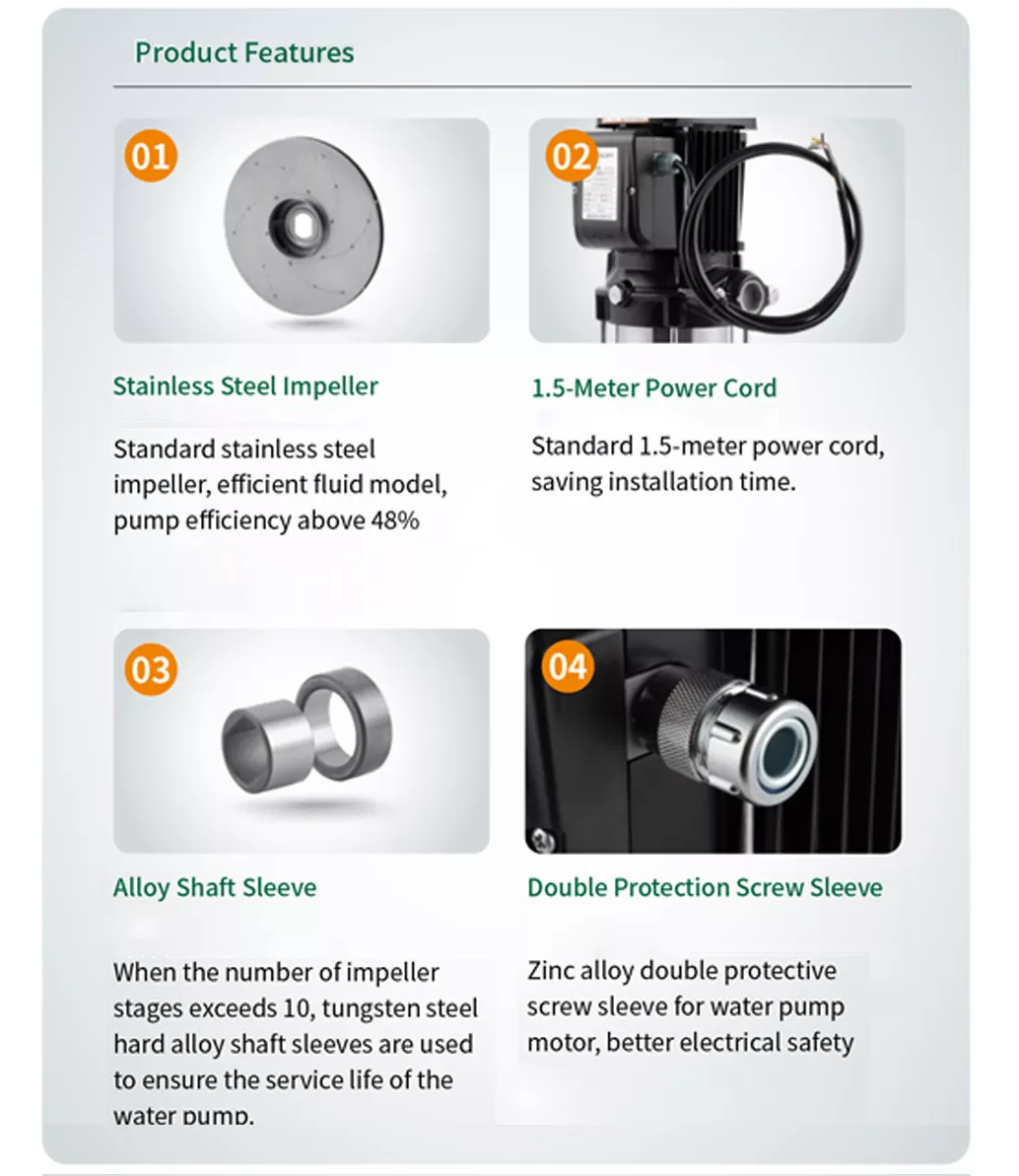

The following is an introduction of CPL Series .It is the vertical multistage centrifugal pump which is a new type of pump with a direct-connected design. comparing to the coupled-connected multistage water pump, it is with better cost effctive. Withstainless steel impellers and engineering PPO diffusers, basing onthe high efficient fluid model, the pump efficiency is above 48%

CPL is widely used in the intergrated irrigation solution system.

Hope to help you better understand Risefull Indutrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together

Product Specification:

Product Name:	Irrigation and fertilizer integrated machine pump
Power	1.1kW~2.2kW
Max Flow	6m³/h
Max Head	67M~123M
Inlet/outlet	1”X1”
Pump Body	Stainless Steel 304
Diffuser	High Rank Industrial PPO
Bracket Plate	Cast Iron with Elector-coating
Shaft	S.S Shaft
Impeller	Stainless Steel 304 Impeller
Motor	Copper wire
Color	Powder Color Coating
MOQ:	10pcs
Sample Time:	Within 7 days
Production Time:	35-40 days after order confirmation
Certificate	CE

Product Details

Working Condition

1. Liquid Temperature: 0~90°C

2. Maximum Ambient Temperature: < 45°

3. .Maximum Pressure: 15 Bar

4. Medium Physical Properties:

● Clear water and similar liquids, coolantsand lubricants (free offibers, with solidparticle diameter < 2mm and proportion≤ 3%)

● Neutral liquids with a PH value = 7±1

5.lf the altitude is higher than 1000 metersand the viscosity of the medium is greaterthan that of clean water, it is necessary toincrease the margin of the water pump toavoid overheating of the motor.

Performance Data

Model	Power		Q m³/h	1	2	3	4	5	6
Model	kW	HP	Q m³/h	1	2	3	4	5	6
CPL4-7-1.1	1.1	1.6	H(m)	67	61	59.5	50	39	12


CPL4-8-1.5	1.5	2		75	70.5	65	55	41	23
CPL4-9-1.6	1.6	2.2		83	79	74	62	45	25
CPL4-10-1.8	1.8	2.5		94	88	80.5	69	51.5	27
CPL4-11-1.9	1.9	2.6		104	97	88	76	58	30
CPL4-12-2.0	2	2.8		113	108	98	83	65	34
CPL4-13-2.2	2.2	3		123	118	107	90	79	28

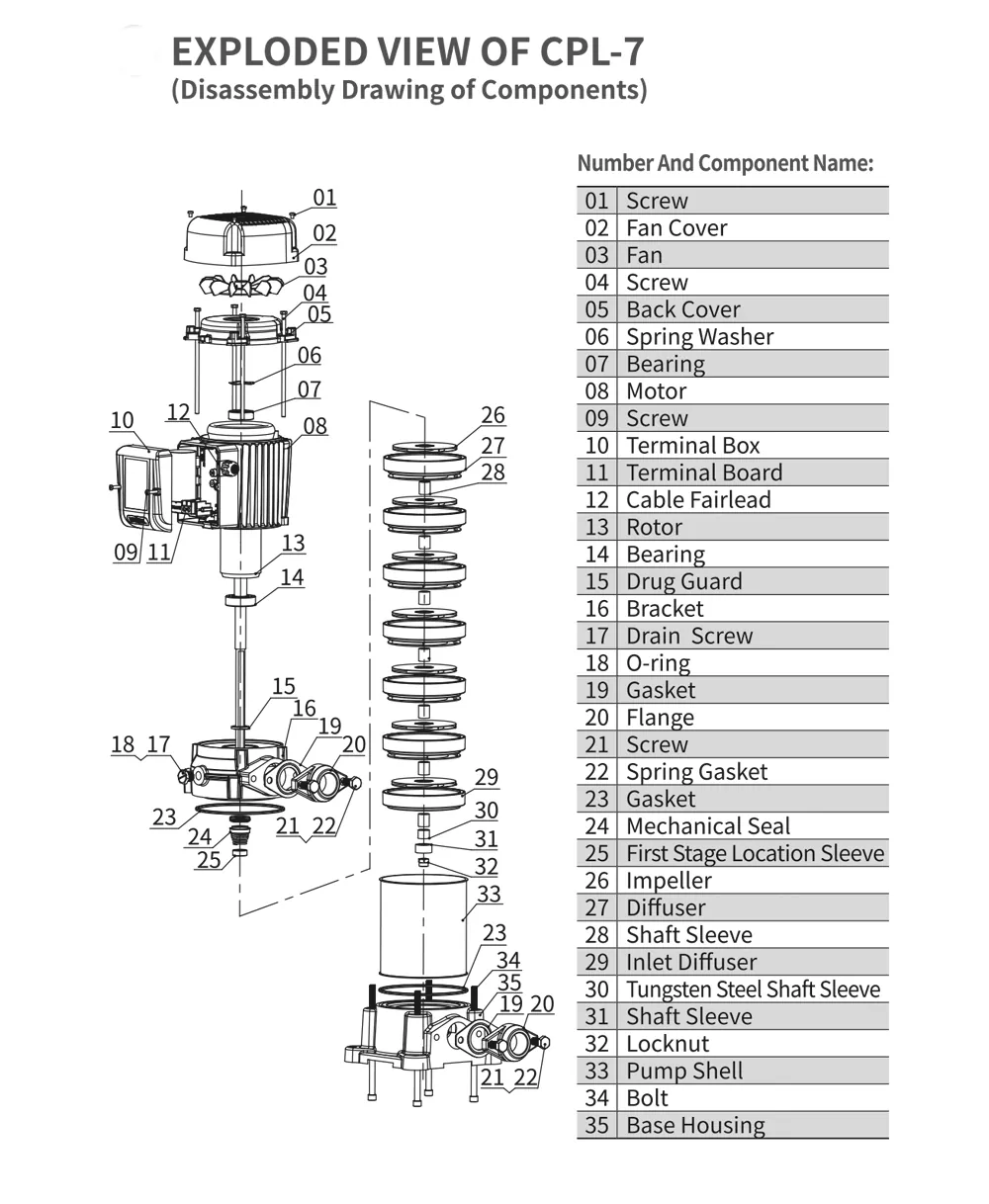

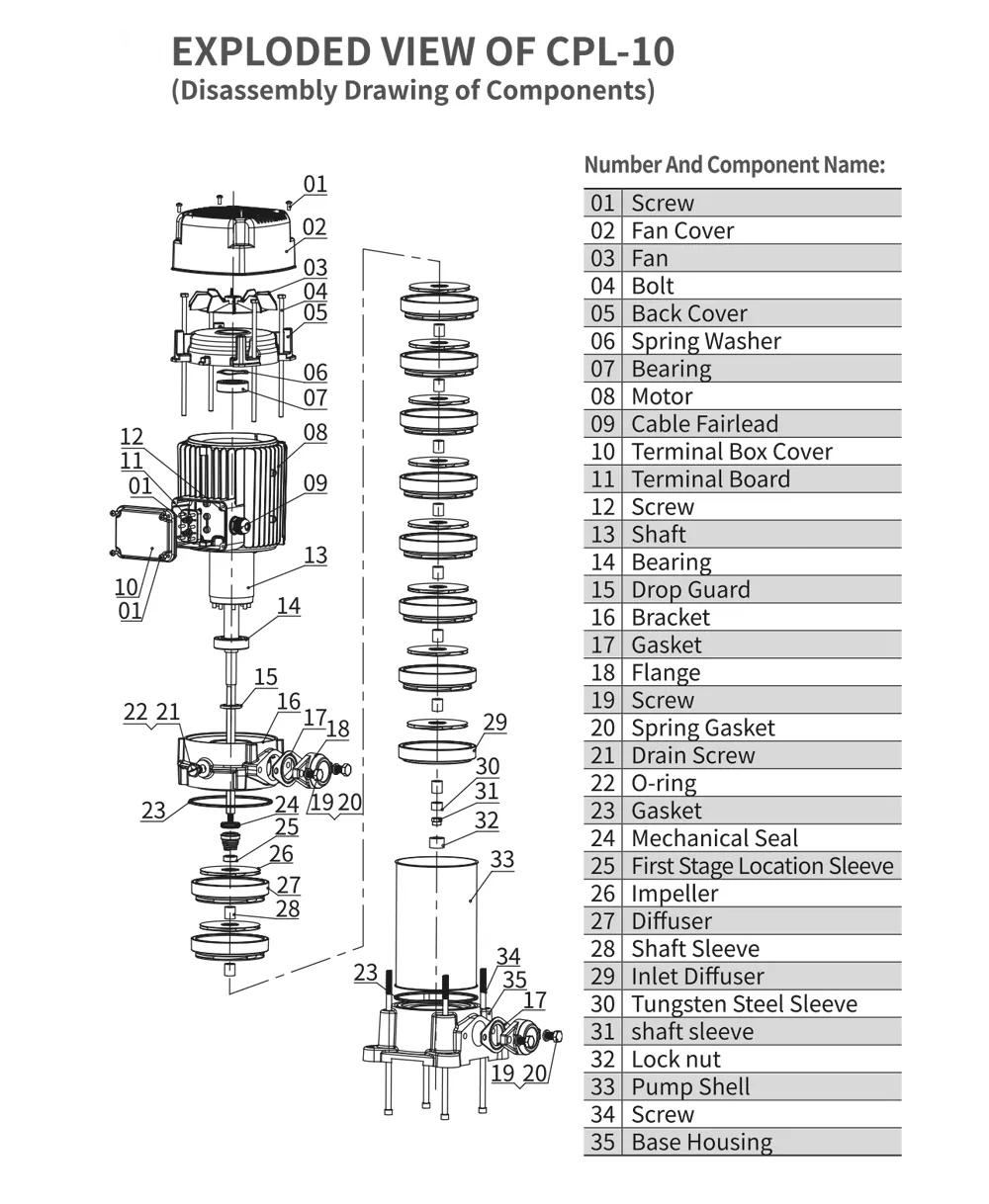

Exploded View Of Main Component

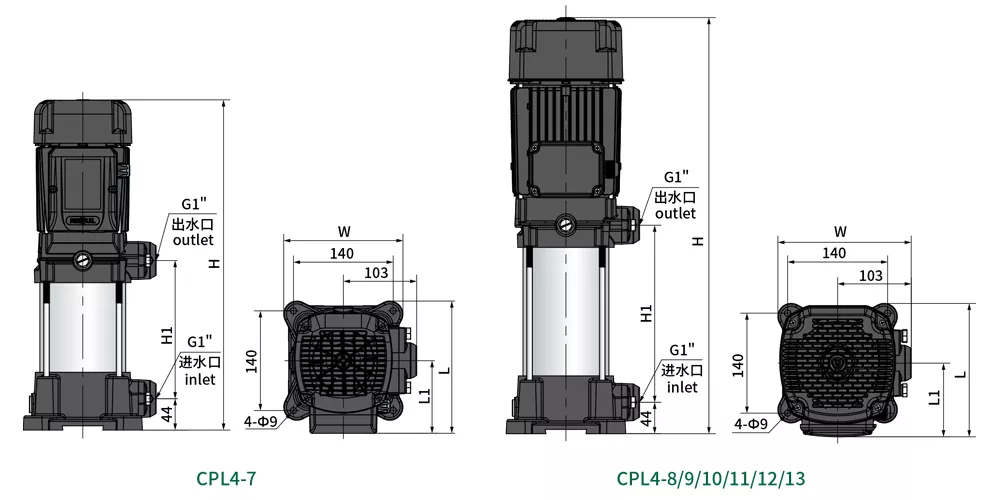

Installation Dimensions

Motor	Model	Dimension(mm)					Weight (kg)
		H1	H	W	L1	L
Three-phase Single-phase	CPL4-7-1.1	194	464	167.5	102	186	19.5
	CPL4-8-1.5	212	547	187	103	187	23
	CPL4-9-1.6	230	565	187	103	187	24
	CPL4-10-1.8	248	583	187	103	187	25
	CPL4-11-1.9	266	601	187	103	187	25.5
	CPL4-12-2.0	284	619	187	103	187	27
	CPL4-13-2.2	302	637	187	103	187	28
