Stainless Steel fertilizer machine JET pump

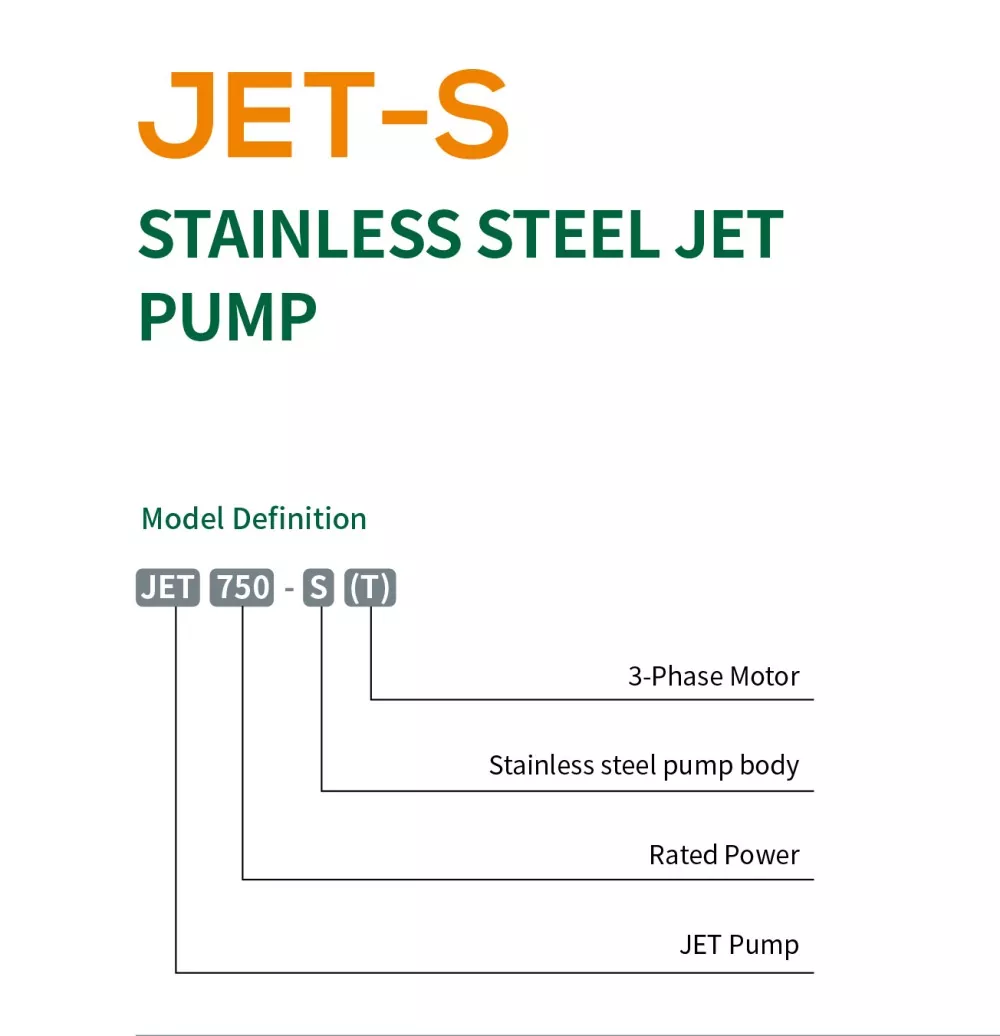

Model:JET550S/JET750S/JET1000SH/JET110S

Risefull is a an innovative and professional water pump manufacturer and supplier in China. We have been specialized in electric water pump for many years. With years of experience in household water pump ,industrial water pump and pump accessories ,Risefull water pump can meet many applications .For the household pump ,we can cover many applications such as ,pipeline booster ,downward booster ,water tower filling ,shallow well pumping and deep well pump .For the industrial water pump ,we can supply centrifugal pump ,peripheral water pump,self-priming peripheral water pump ,high temperature water pump ,self-priming jet pump ,GD in line pump,stainless steel multistage centrifugal water pump .

Send Inquiry

Product Description

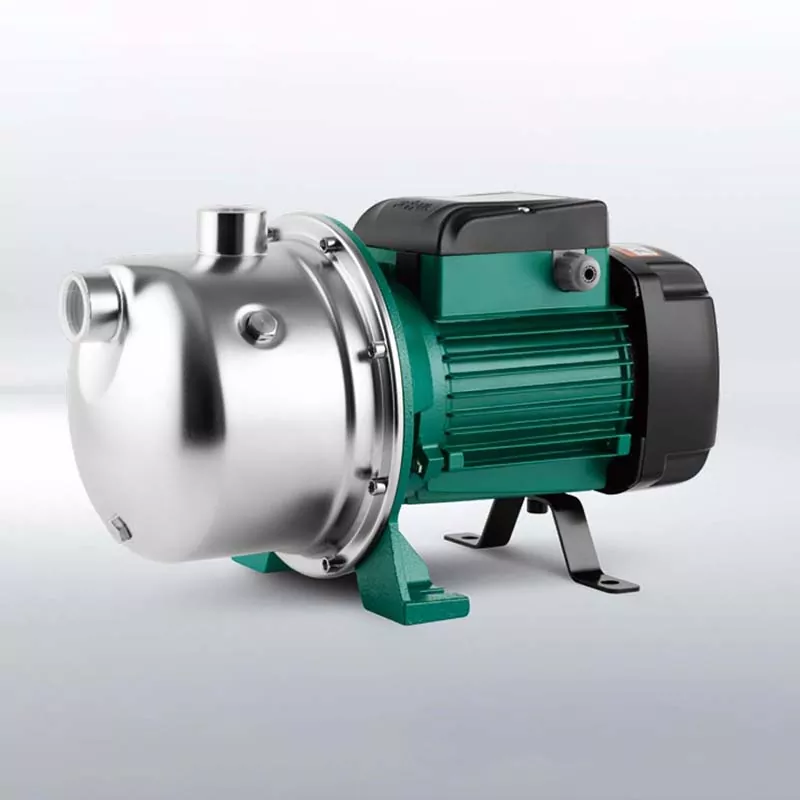

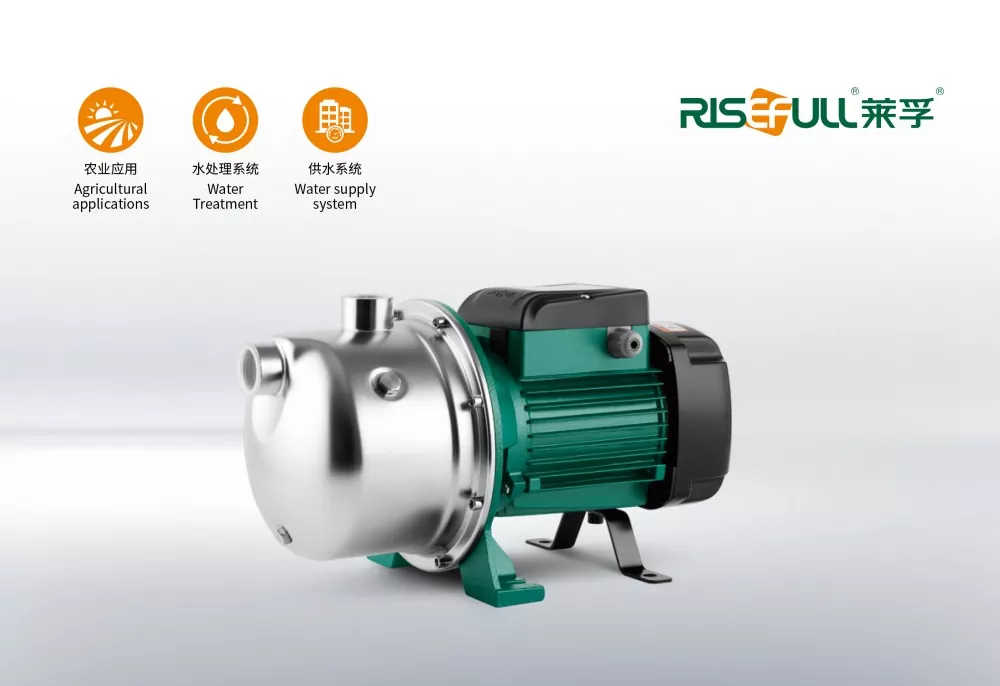

The following is an introduction of JETS Series .Stainless steel jet pump is a classical best-selling product.The pump body is made of stainless steel AISI304 and the internal components are made of water resistant engineering PPO. It is with self-priming capacity of about 4 meters and widely used in:

1. Agricultural application: Agricultural sprinkling irrigationand drip irrigation

2. Water treatment system: water cleaning, water filtration

3. Water supply system: pipeline transportation, buildingpressurization

Hope to help you better understand Risefull Indutrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together

Product Specification:

Product Name:	Irrigation and fertilizer integrated machine pump
Power	0.55kW~1.1kW
Max Flow	4.0m³/h
Max Head	40M~50M
Inlet/outlet	1”X1”
Pump Body	Stainless Steel 304
Diffuser	High Rank Industrial PPO
Bracket Plate	Cast Iron with Elector-coating
Shaft	S.S Shaft
Impeller	High Rank Industrial PPO
Motor	Copper wire
Color	Powder Color Coating
MOQ:	10pcs
Sample Time:	Within 7 days
Production Time:	35-40 days after order confirmation
Certificate	CE

Product Details

Product Features

Working Condition

1. Liquid Temperature: 0~90°C

2. Maximum Ambient Temperature: <45°C

3. Maximum Pressure: 10 Bar

4. Medium Physical Properties:

Clear water and similar liquids, coolants, and lubricants (free of fibers, with solid particle diameter ≤ 2mm and proportion ≤ 3%)

Neutral liquids with a PH value=7±1

5.lf the altitude is higher than 1000 metersand the viscosity of the medium is greater than that of clean water, it is necessary to increase the margin of the water pump to avoid overheating of the motor.

Performance Data

Model		Power		Q m³/h L/Min	0	0.6	1.2	1.8	2.4	3.0	3.6	3.9	4.0
Single-phase	Three-phase	kW	HP		0	10	20	30	40	50	60	65	70
JET550S	JET550ST	1.1	1.6	H (m)	40	36	32	30	27	24	13
JET750S	JET750ST	1.5	2		48	43	42	37	34	30	27	4
JET1000SH	JET1000SHT	1.6	2.2		59	52	46	41	17	3
JET1100S	JET1100ST	1.8	2.5		50	45	43	39	36	33	31	27	8
