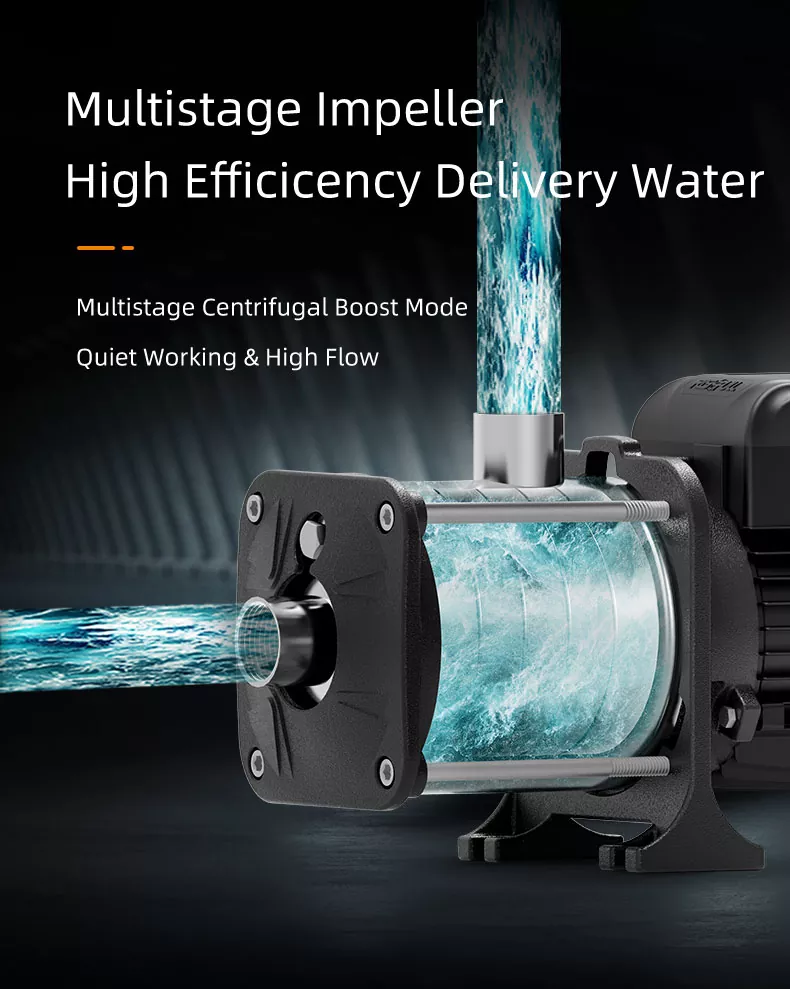

Smart High Pressure Multistage Pump

Innovative Design: Our Smart High Pressure Multistage Pump is equipped with state-of-the-art technology, ensuring optimal functionality and durability. The multistage design allows for high-pressure output, making it ideal for a wide range of applications.

Efficiency at Its Best: With energy efficiency in mind, our pump is designed to minimize power consumption while maximizing output. This not only helps you save on energy costs but also reduces overall environmental impact.

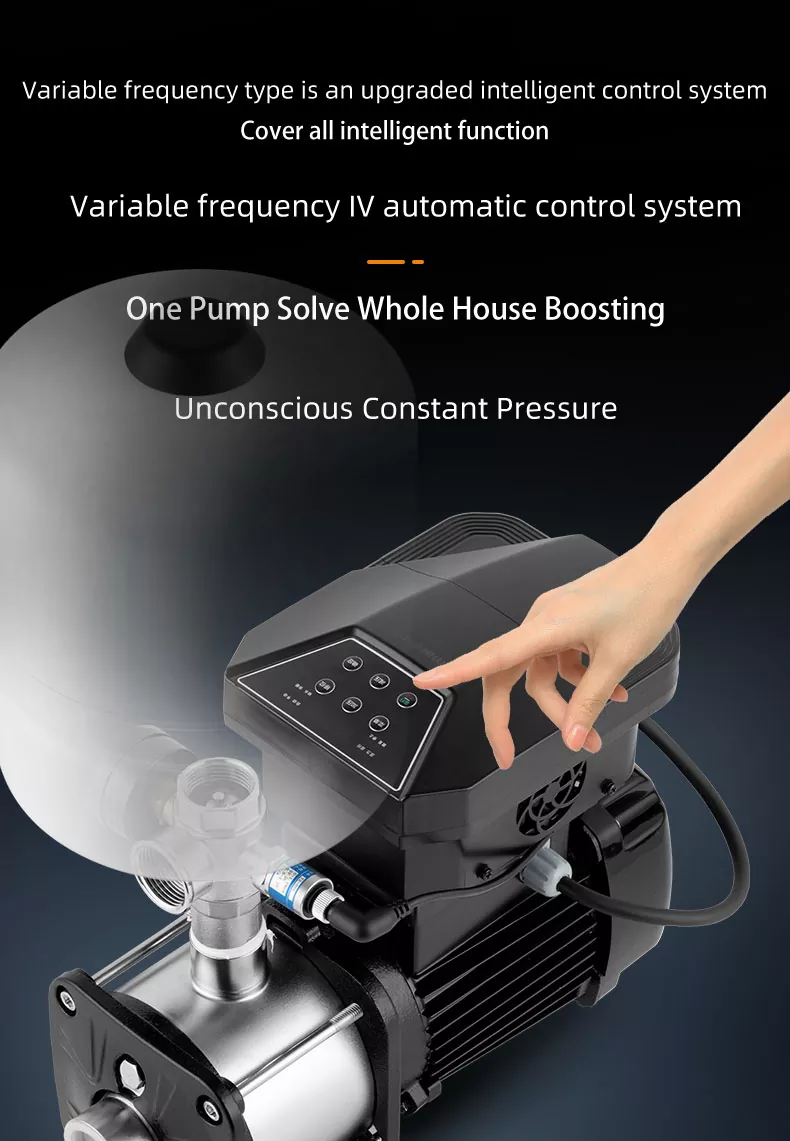

User-Friendly Features: The Smart High Pressure Multistage Pump comes with user-friendly smart elecotronical pressure controls, allowing for easy operation and monitoring. Say goodbye to complicated setups – this pump is designed to streamline your pumping process.

Versatile Applications: From residential water systems to agricultural irrigation and industrial processes, this pump is versatile enough to handle it all. Its high-pressure output makes it suitable for various settings, providing you with a reliable solution for your pumping needs.

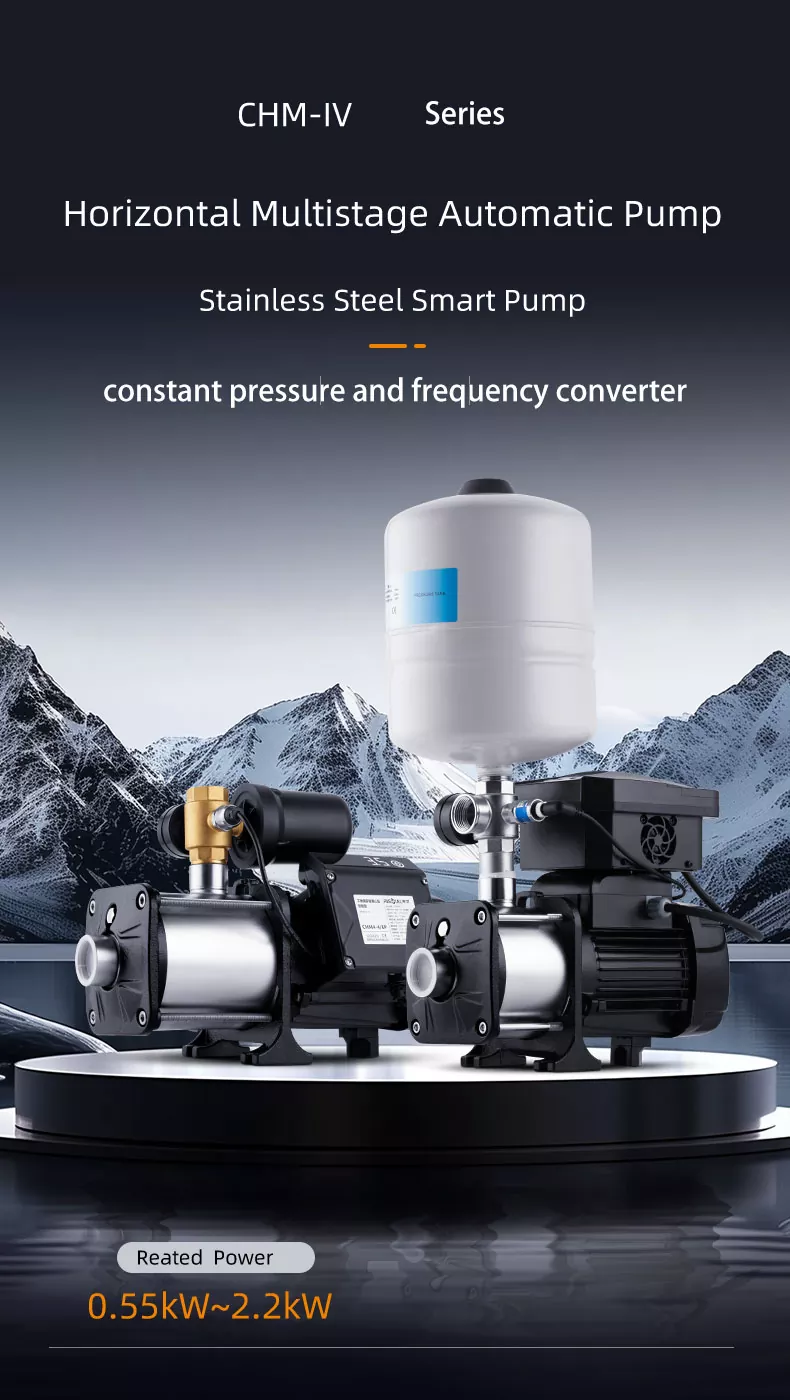

Risefull Rated Flow capcacity 16m³/h  Smart Inverter Horizontal Stainless Steel Multistage Centrifugal Pump

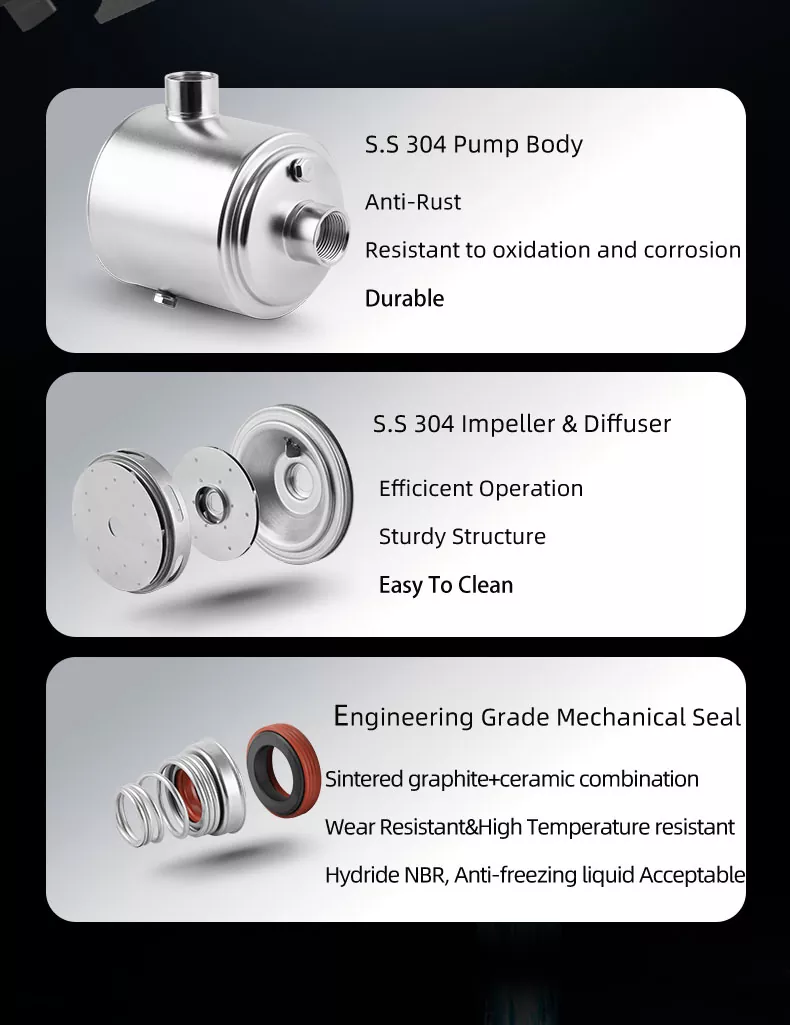

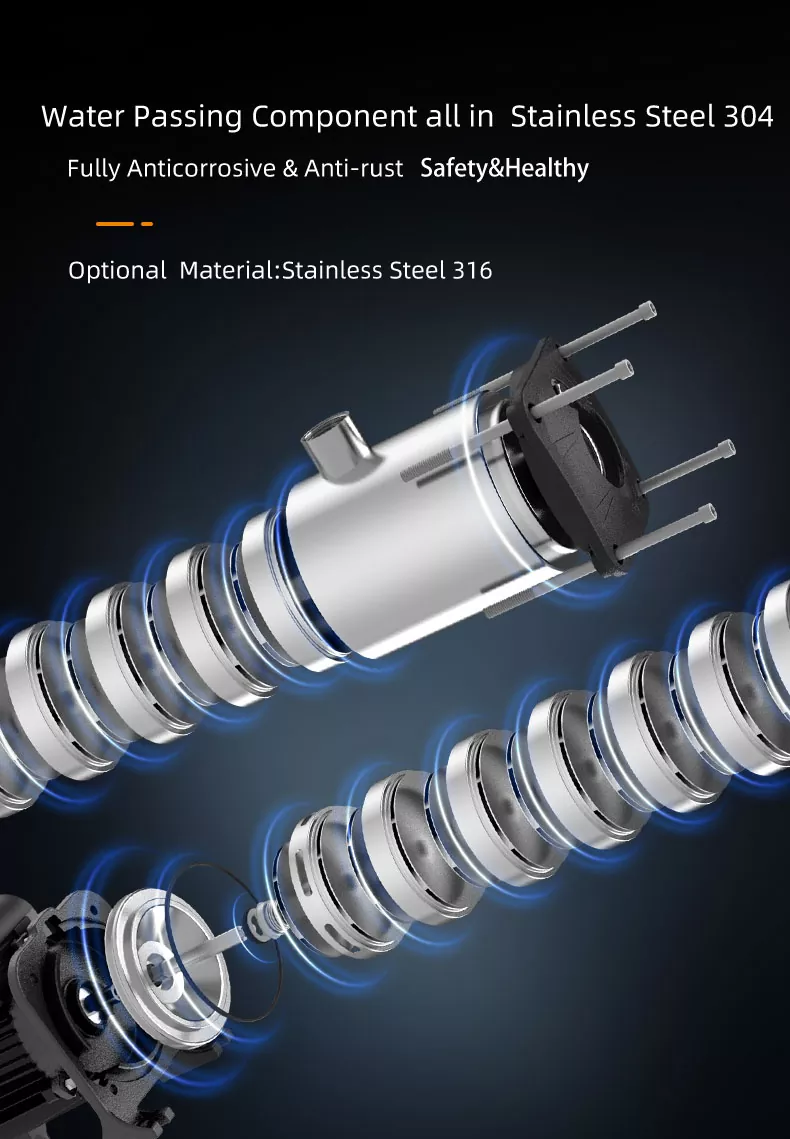

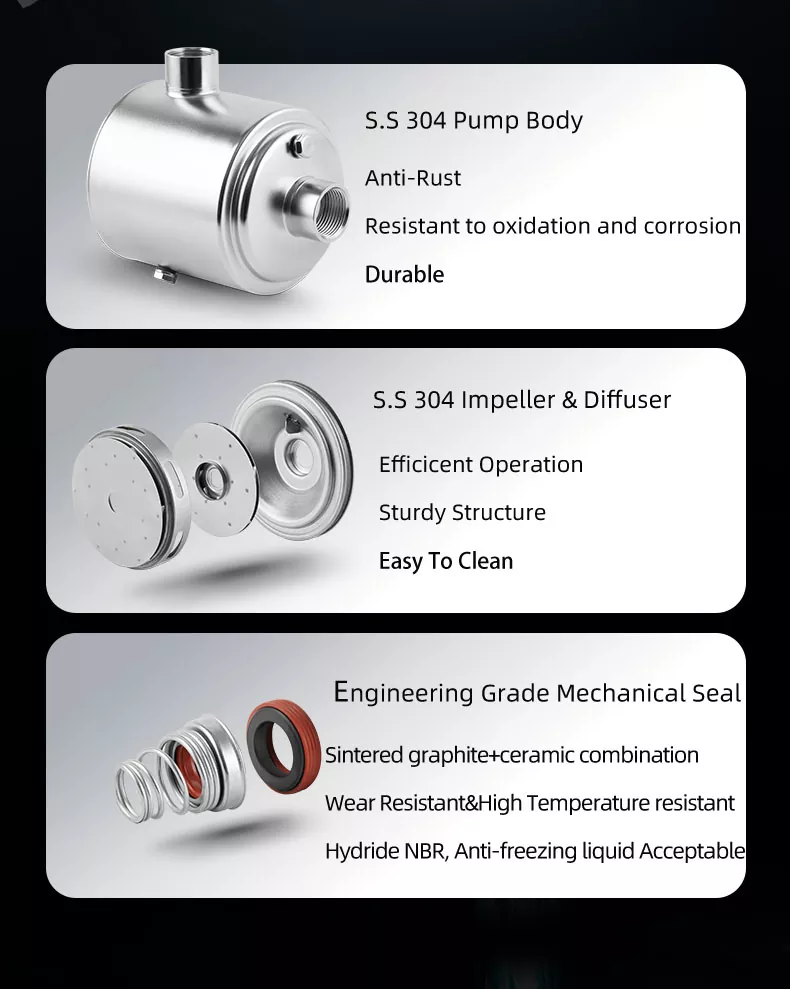

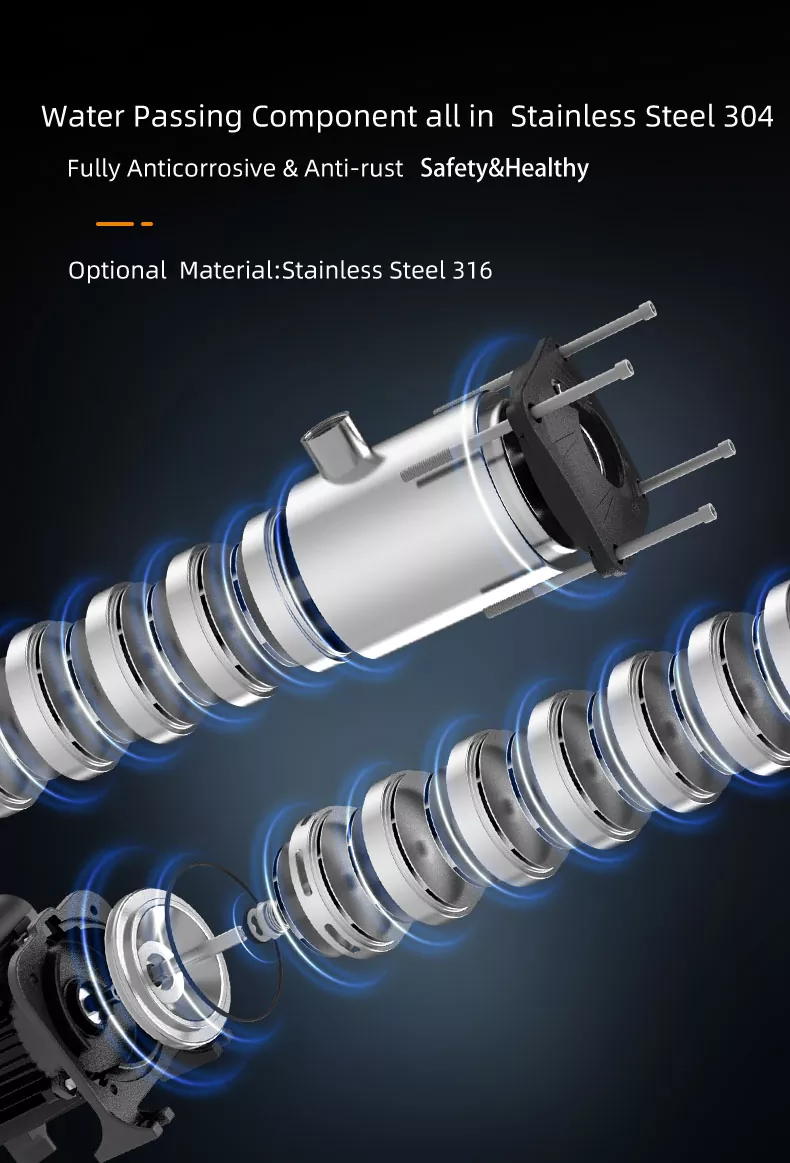

CHM16/IV series smart inverter series horizontal stainless steel multistage centrifugal pump is a relatively mature product on the market currently which is with compact structure and stable working, low operating noise, eiciency up to 44-70%. All water passing components are made of stainless steel AISI304 .It is widely used in

1. Air Conditioning Cooling system & HVAC system

2. Water Treatment: Water Cleaning and Water Filtering

3. Water supply system: Pipeline delivery and building booster

Fishery Industry and Agriculture: Aquaculture, Farm sprinkling irrigation &drip irrigation

Product Details

Product Specification:

Working Condition

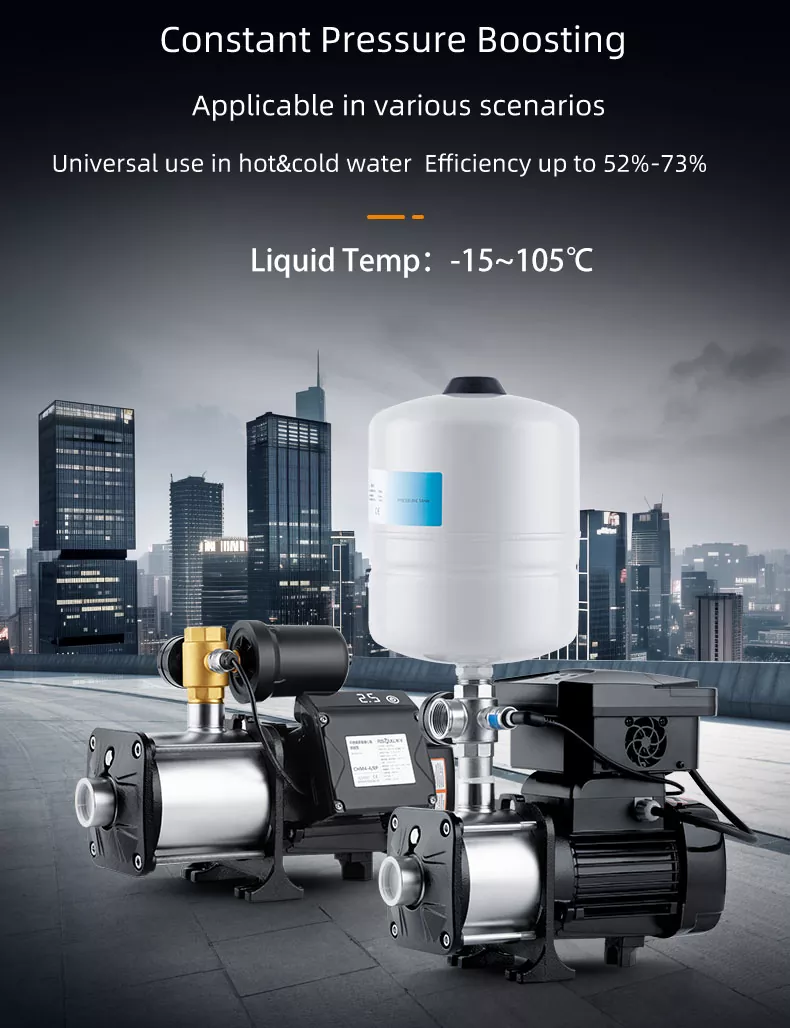

1. Liquid Temperature: -15~105°c

2. Maximum Ambient Temperature: +45°C

3. Maximum Pressure: 10 Bar

4. Medium Physical Properties:

● Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)

● Antifreeze Liquid (Main component: glycol)

● Mild corrosive liquid (PH 5- 9)

● Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)

5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.
