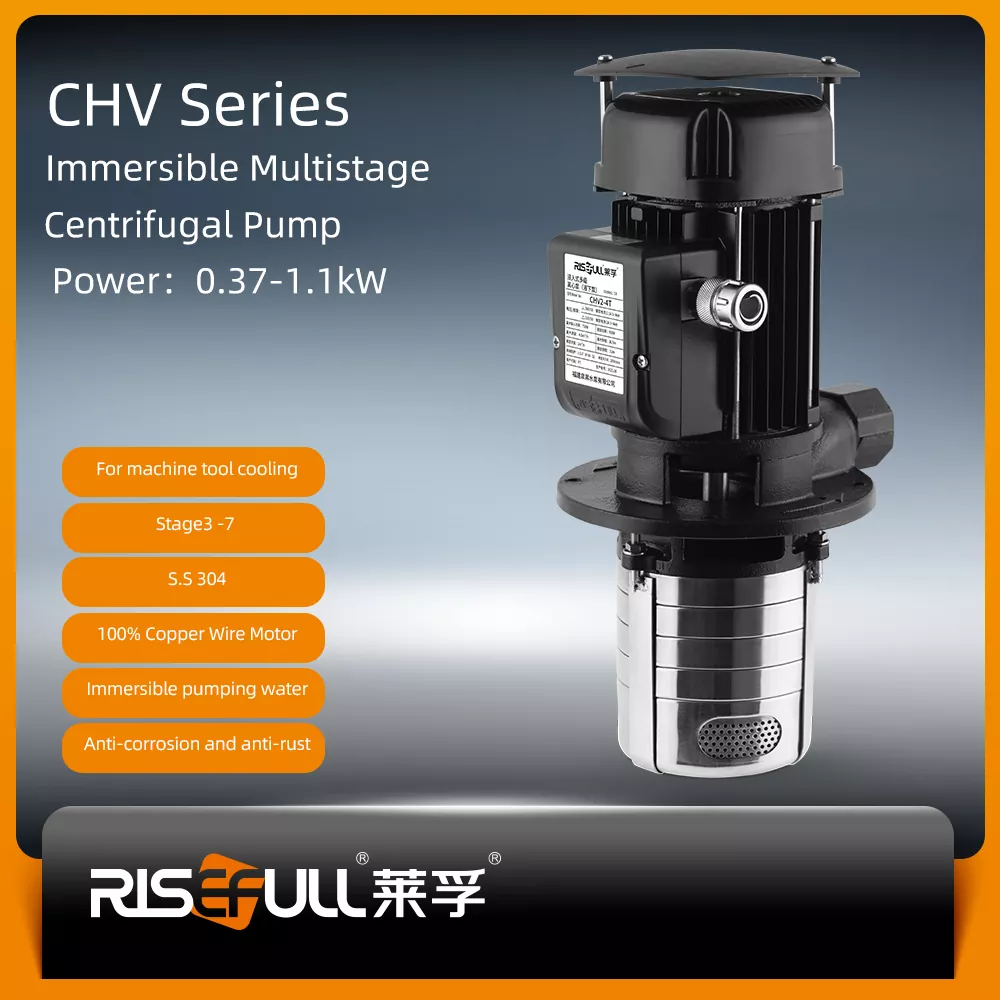

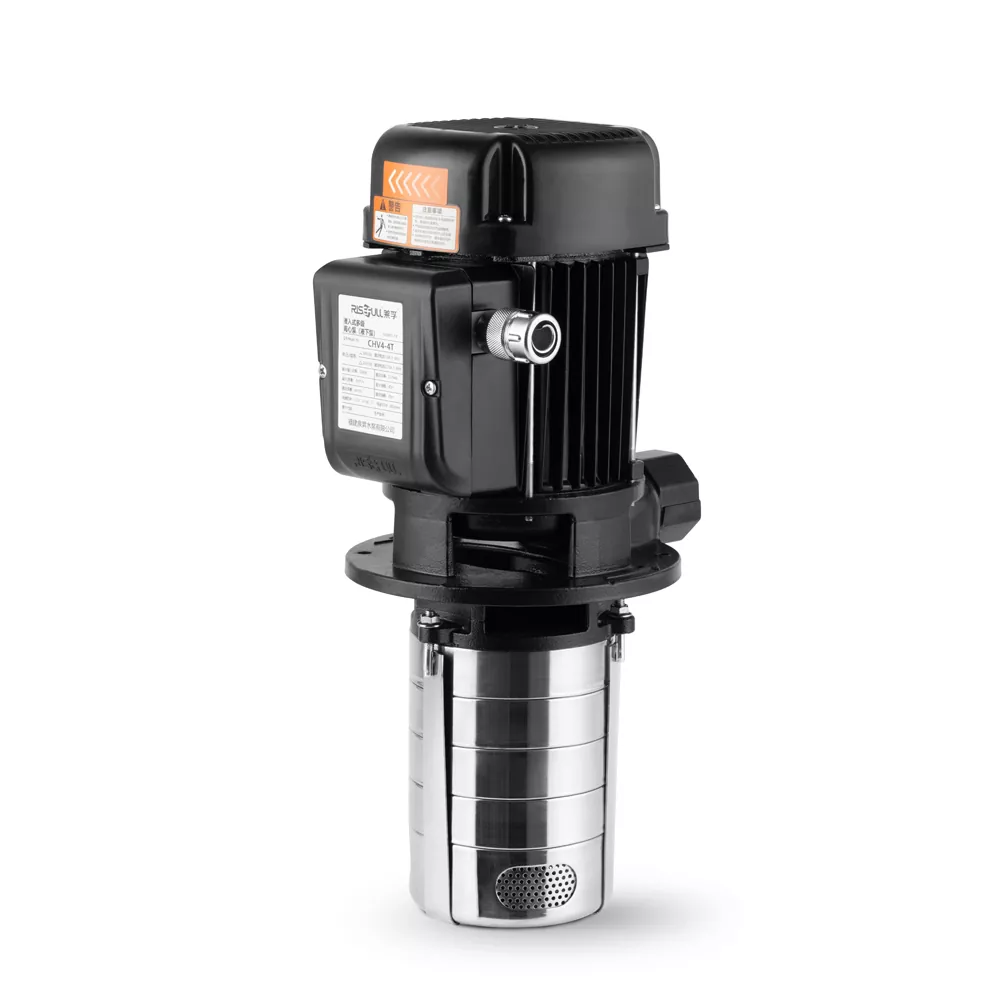

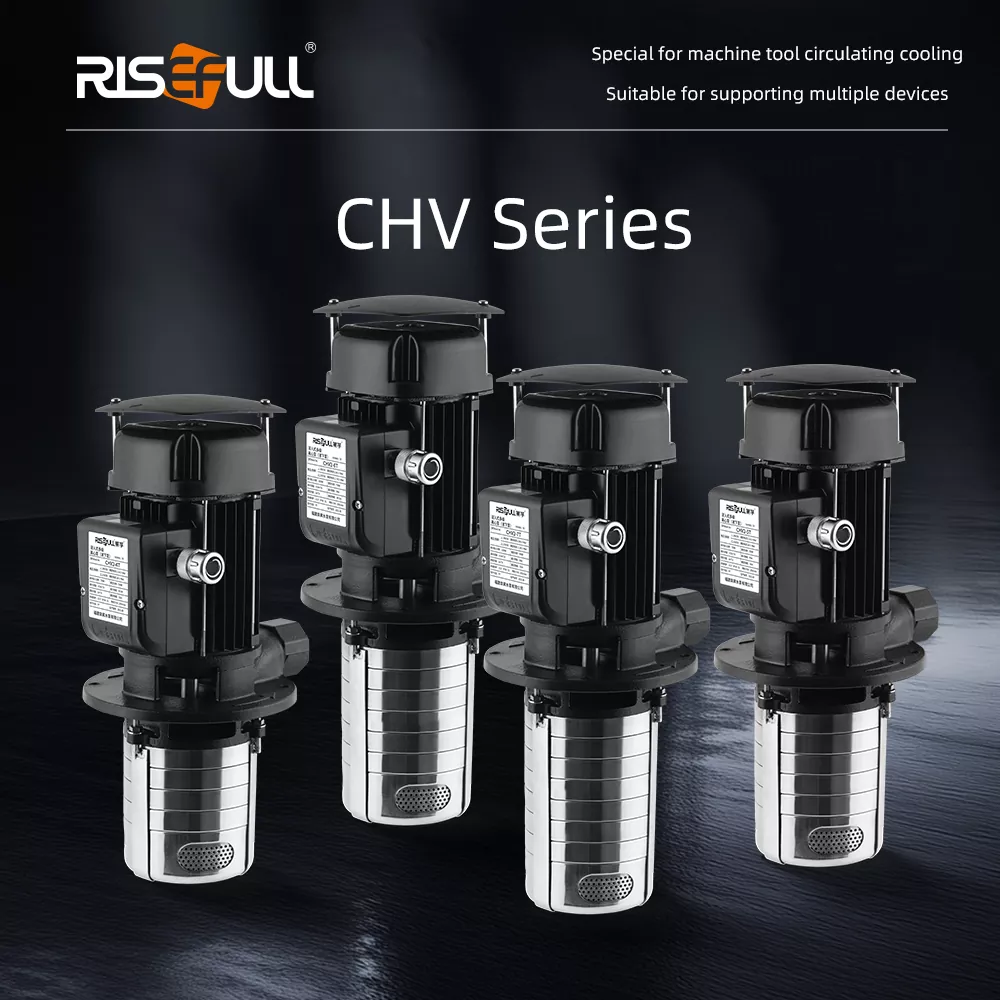

The following is an introduction of CHV Series The CHV immersible multistage centrifugal pump,also known as a submerged pump or machine toopump, is used for conveying machine tool coolant,lubricant, condensate water transfer, industrial cleaning equipment, filtration systems, and other applications suitable for submerged pump usage. lt is ideal for integration with machine tools, grinding machines, CNC machining centers, EDM machines, industrial cleaning machines, and other equipment.
|
Product Name: |
Vertical Multistage Centrifugal Pump |
|
Power |
0.37kW~1.1kW |
|
Max Flow |
4.5m³/h |
|
Max Head |
28M~82M |
|
Inlet/outlet |
1”X1” |
|
Pump Body |
Stainless Steel 304 |
|
Diffuser |
Stainless Steel 304 |
|
Bracket Plate |
Cast Iron with Elector-coating |
|
Shaft |
S.S Shaft |
|
Impeller |
Stainless Steel 304 Impeller |
|
Motor |
Copper wire |
|
Color |
Powder Color Coating |
|
MOQ: |
10pcs |
|
Sample Time: |
Within 7 days |
|
Production Time: |
35-40 days after order confirmation |
|
Certificate |
CE |
|
Model |
Power |
Q m³/h |
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
|||||||||
|
kW |
HP |
|||||||||||||||||||
|
CHV2-3 |
0.37 |
0.5 |
H (m)
|
28 |
26.5 |
24.5 |
22 |
19 |
15.5 |
12 |
8 |
6 |
||||||||
|
CHV2-4 |
0.55 |
0.75 |
36.5 |
35 |
32 |
31 |
29 |
26.5 |
23 |
15 |
14 |
|||||||||
|
CHV2-5 |
0.55 |
0.75 |
45 |
43 |
40 |
36 |
32 |
27.5 |
22 |
16 |
15 |
|||||||||
|
CHV2-6 |
0.75 |
1 |
54 |
52 |
49 |
44.5 |
39 |
35 |
25.5 |
20 |
18 |
|||||||||
|
CHV2-7 |
0.9 |
1.2 |
64 |
61 |
57 |
53 |
48 |
44 |
39 |
37 |
27 |
|||||||||
|
CHV2-8 |
1 |
1.4 |
73 |
70 |
66 |
63 |
57 |
52 |
46 |
42 |
32 |
|||||||||
|
CHV2-9 |
1.1 |
1.5 |
82 |
78 |
73 |
71 |
65 |
59 |
55 |
46 |
35 |
|||||||||
