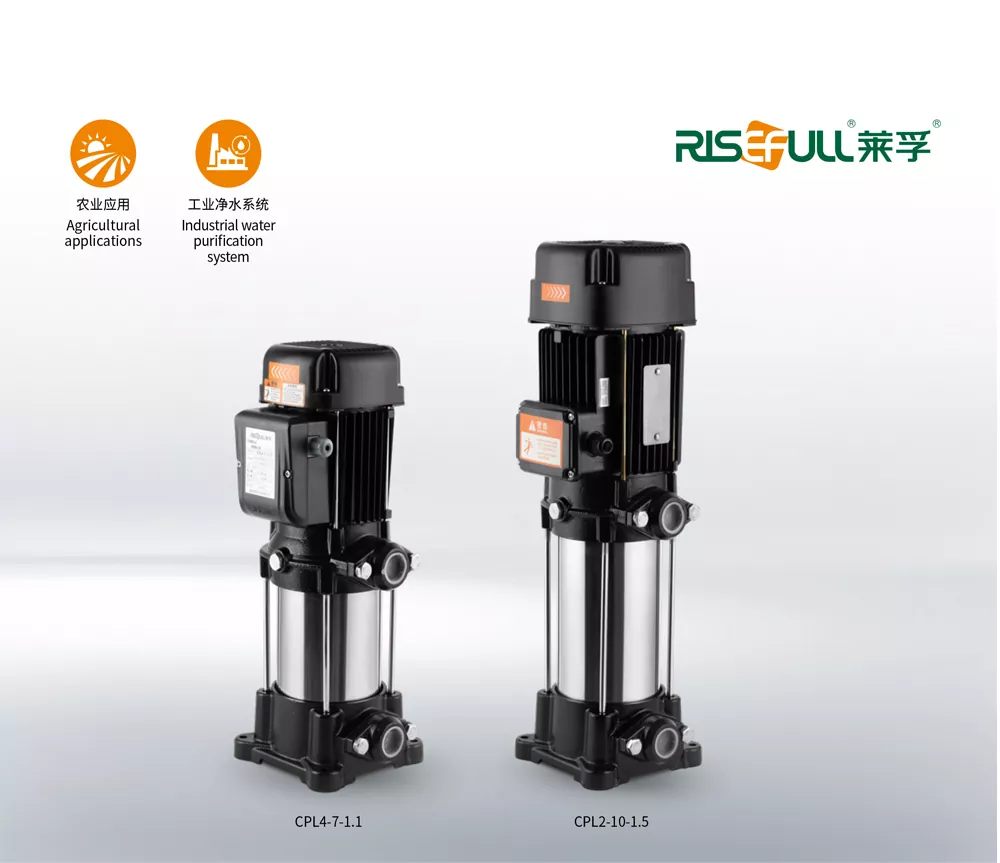

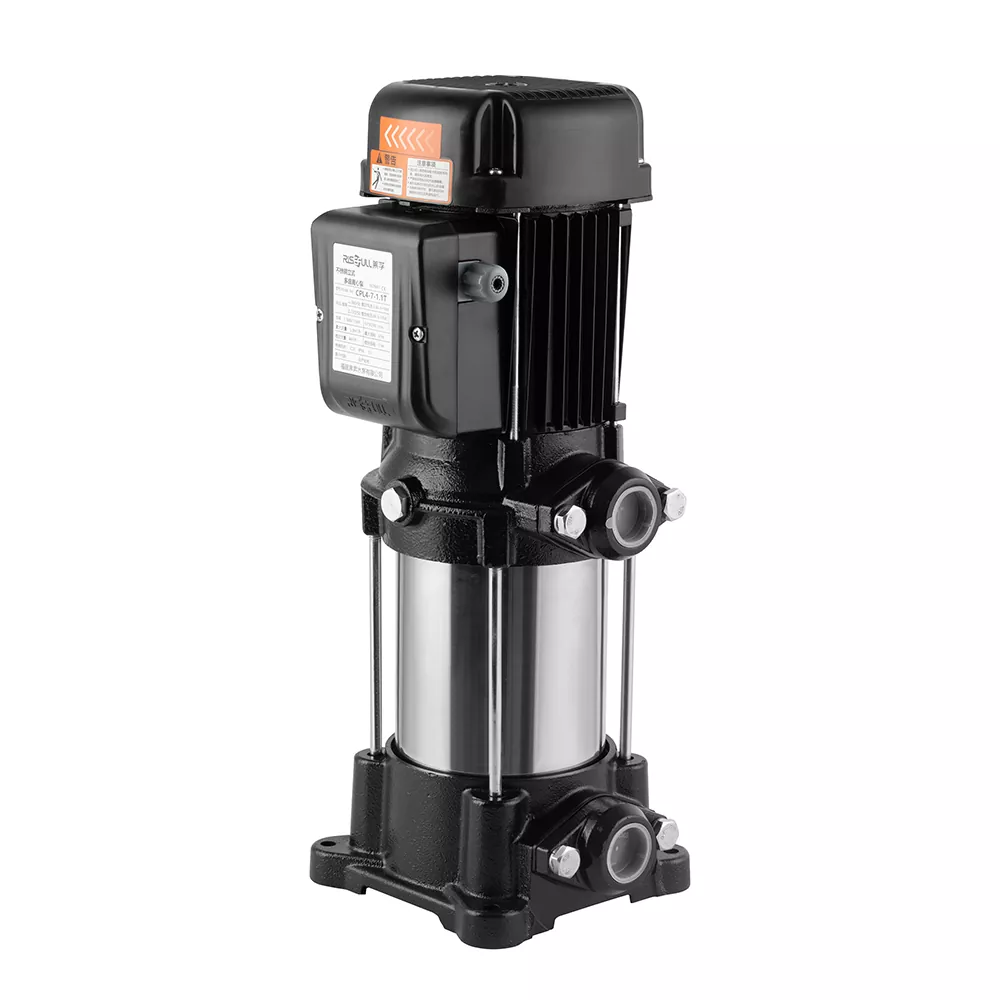

Vertical Multistage Centrifugal Pump

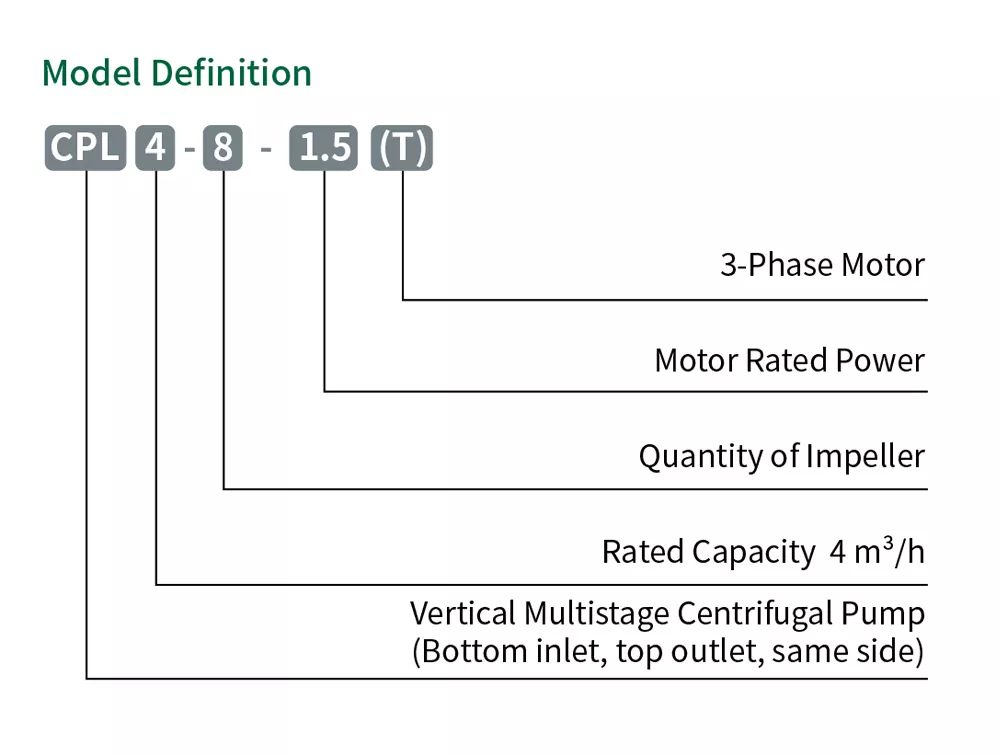

Model:CPL4-7-1.1/CPL4-8-1.5/CPL4-9-1.6/CPL4-10-1.8/CPL4-11-1.9/CPL4-12-2.0/CPL4-13-2.2

Risefull is a an innovative and professional water pump manufacturer and supplier in China. We have been specialized in electric water pump for many years. With years of experience in household water pump ,industrial water pump and pump accessories ,Risefull water pump can meet many applications .For the household pump ,we can cover many applications such as ,pipeline booster ,downward booster ,water tower filling ,shallow well pumping and deep well pump .For the industrial water pump ,we can supply centrifugal pump ,peripheral water pump,self-priming peripheral water pump ,high temperature water pump ,self-priming jet pump ,GD in line pump,stainless steel multistage centrifugal water pump .

Send Inquiry

Product Description

Compact Structure & Small Footprint

The motor and pump feature is a direct-coupled design, offering a high cost-performance ratio.

High Efficiency, Energy Saving & Low Noise

An efficient hydraulic model and advanced manufacturing technology enhance energy efficiency, ensuring smooth operation with minimal vibration and low noise levels.

Wide Range of Applications

The pump head can be adjusted by changing the number of impellers to meet various requirements. It is suitable for clean water or liquids with similar properties, while certain models can be customized for corrosive media.

Reliable Materials & Sealing

The housing is typically made of stainless steel or engineering plastics, while impellers are constructed from corrosion-resistant cast iron or engineering plastics. Mechanical seals composed of graphite/ceramic components ensure leak-free operation.

Product Specification:

Product Name:	Vertical Multistage Centrifugal Pump
Power	1.1kW~2.2kW
Max Flow	6m³/h
Max Head	67M~123M
Inlet/outlet	1”X1”
Pump Body	Stainless Steel 304
Diffuser	High Rank Industrial PPO
Bracket Plate	Cast Iron with Elector-coating
Shaft	S.S Shaft
Impeller	Stainless Steel 304 Impeller
Motor	Copper wire
Color	Powder Color Coating
MOQ:	10pcs
Sample Time:	Within 7 days
Production Time:	35-40 days after order confirmation
Certificate	CE

Product Details

Working Condition

1. Liquid Temperature: 0~90°C

2. Maximum Ambient Temperature: < 45°

3. .Maximum Pressure: 15 Bar

4. Medium Physical Properties:

● Clear water and similar liquids, coolantsand lubricants (free offibers, with solidparticle diameter < 2mm and proportion≤ 3%)

● Neutral liquids with a PH value = 7±1

5.lf the altitude is higher than 1000 metersand the viscosity of the medium is greaterthan that of clean water, it is necessary toincrease the margin of the water pump toavoid overheating of the motor.

Performance Data

Model	Power		Q m³/h		1.0		2.0	3.0		4.0	5.0		6.0
	kW	HP
CPL4-7-1.1	1.1	1.6	H (m)	67		61		59.5	50		39	12
CPL4-8-1.5	1.5	2		75		70.5		65	55		41	23
CPL4-9-1.6	1.6	2.2		83		79		74	62		45	25
CPL4-10-1.8	1.8	2.5		94		88		80.5	69		51.5	27
CPL4-11-1.9	1.9	2.6		104		97		88	76		58	30
CPL4-12-2.0	2	2.8		113		108		98	83		65	34
CPL4-13-2.2	2.2	3		123		118		107	90		79	28

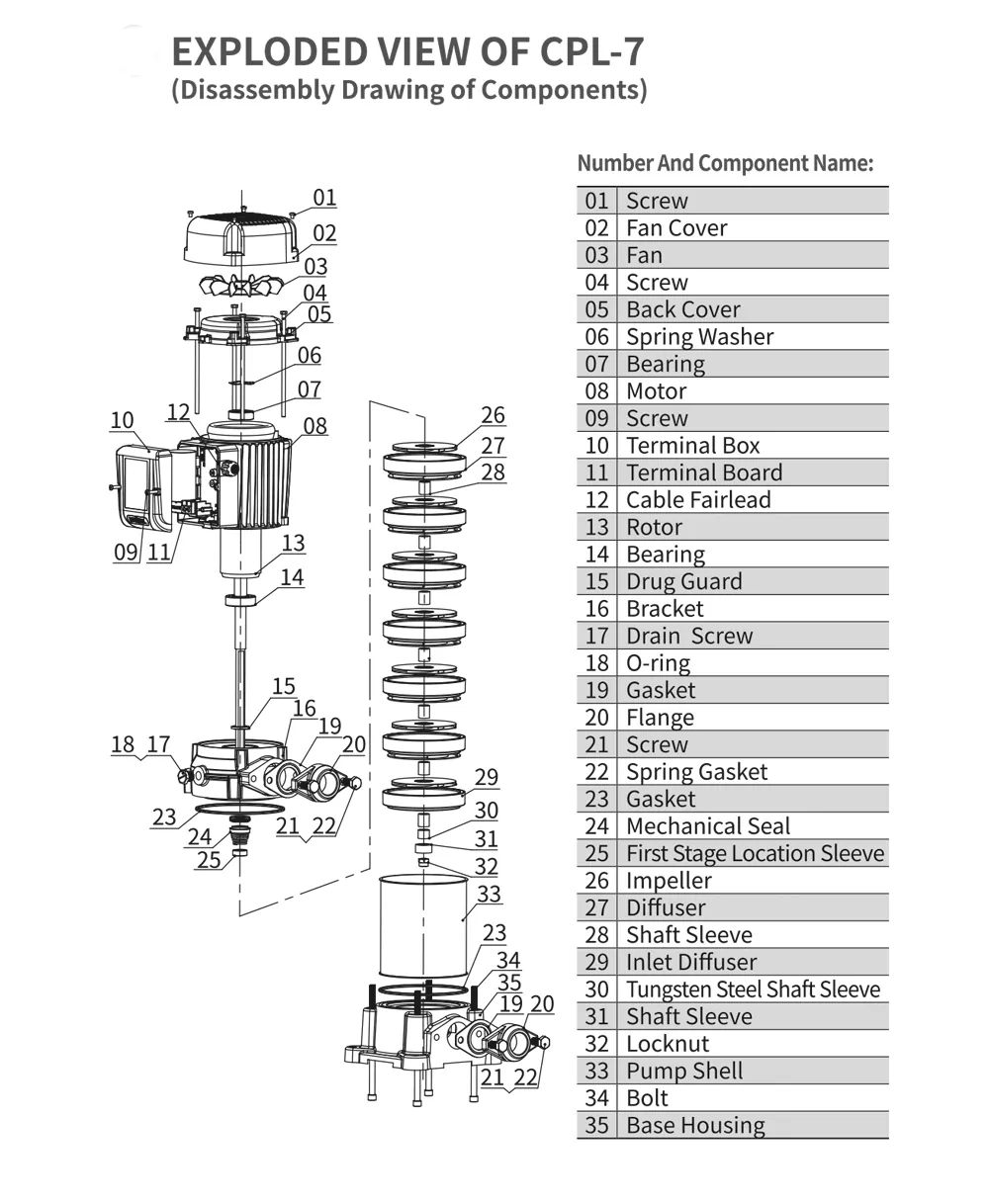

Exploded View Of Main Component

Installation Dimensions

Motor	Model	Dimension(mm)					Weight (kg)
Motor	Model	H1	H	W	L1	L	Weight (kg)
Three-phase Single-phase	CPL4-7-1.1	194	464	167.5	102	186	19.5
	CPL4-8-1.5	212	547	187	103	187	23
	CPL4-9-1.6	230	565	187	103	187	24
	CPL4-10-1.8	248	583	187	103	187	25
	CPL4-11-1.9	266	601	187	103	187	25.5
	CPL4-12-2.0	284	619	187	103	187	27
	CPL4-13-2.2	302	637	187	103	187	28
