Our Vertical Multistage Pump is engineered for maximum efficiency, thanks to its innovative design and superior materials. Whether you're looking to boost water pressure in your residential building or irrigate your agricultural fields, this pump will help you achieve optimal results with minimal energy consumption.
From water supply and pressure boosting to industrial cooling and circulation systems, our Stainless Steel horizontal Multistage Pump is versatile enough to handle a wide range of applications. Its multi-stage configuration allows for higher pressure capabilities, making it ideal for use in high-rise buildings and commercial facilities.
Built to last, this pump features a robust stainless steel construction that resists corrosion and ensures long-term durability. You can rely on this pump to operate smoothly and efficiently, even in the most demanding environments.
We understand the importance of hassle-free maintenance, which is why our horizontal Multistage Pump is designed for easy servicing. With convenient access to key components, routine maintenance tasks can be completed quickly, keeping downtime to a minimum.

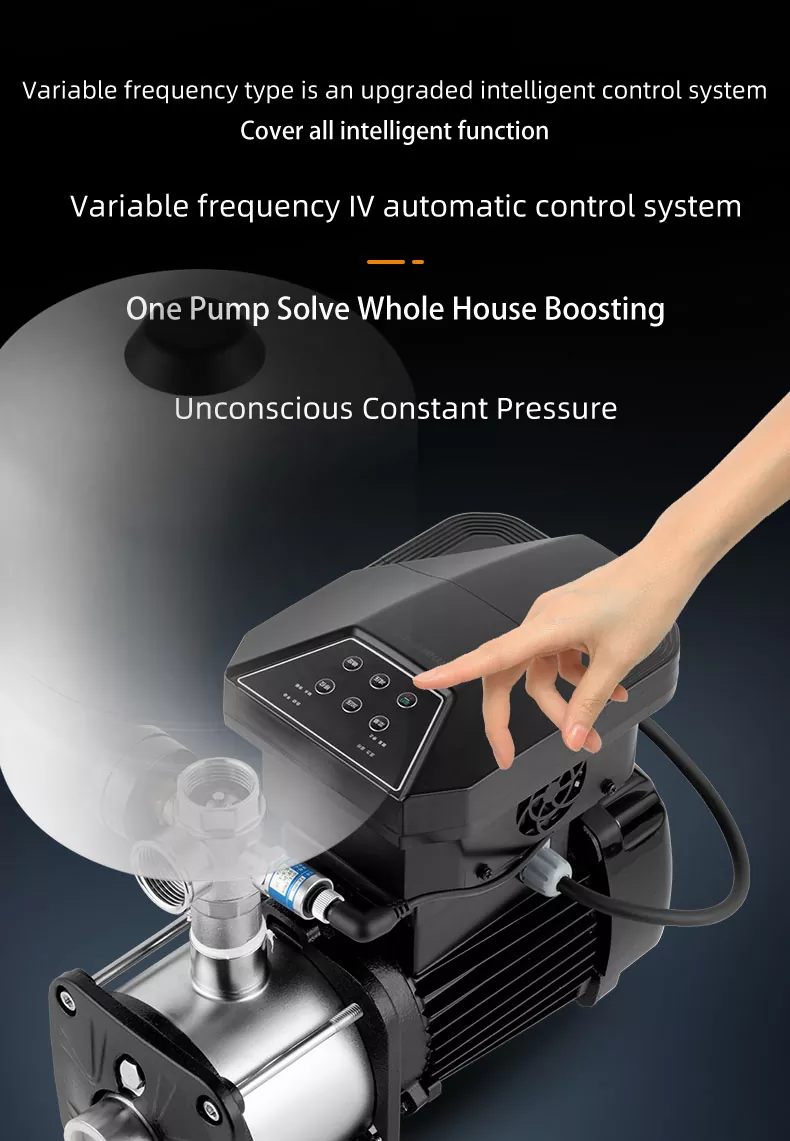

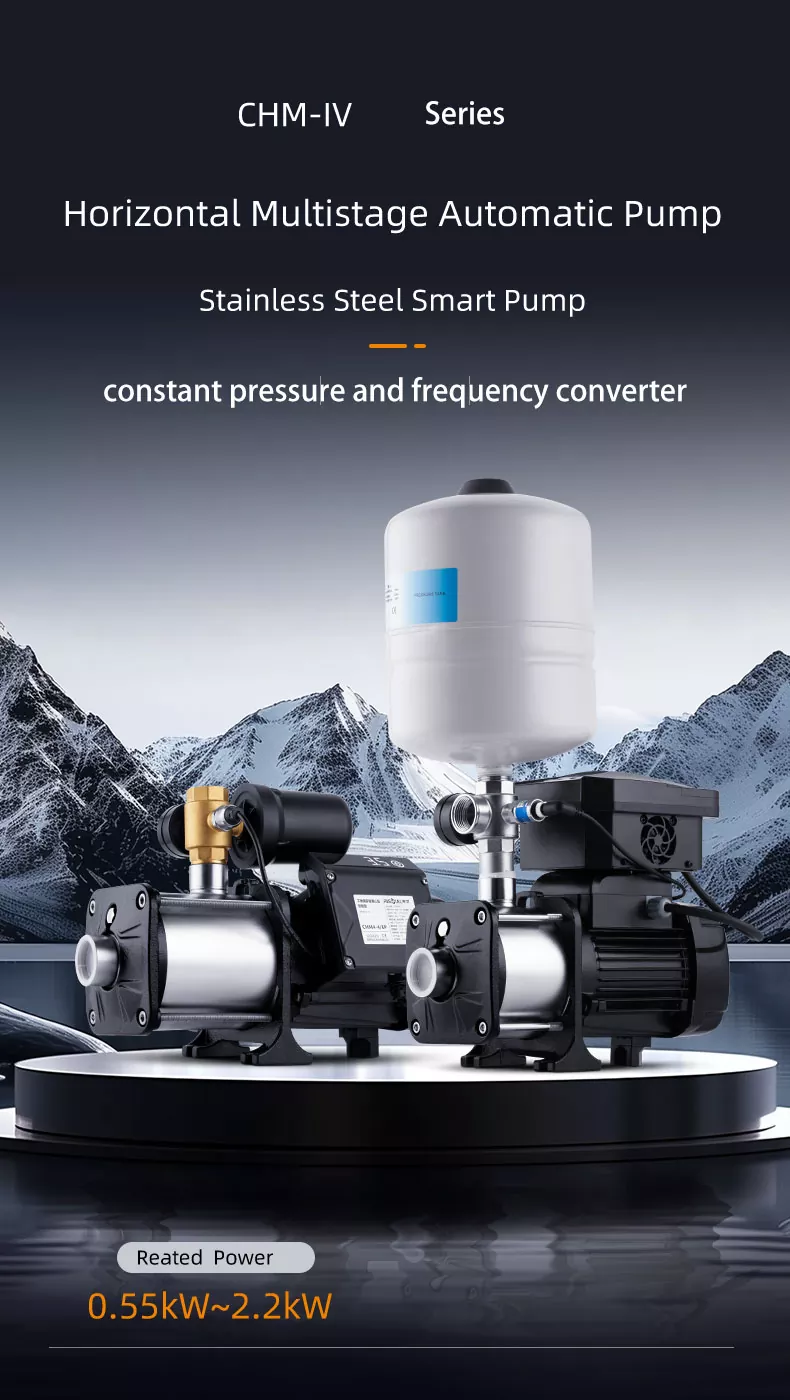

Risefull Rated Flow capcacity 8m³/h Smart Inverter Horizontal Stainless Steel Multistage Centrifugal Pump

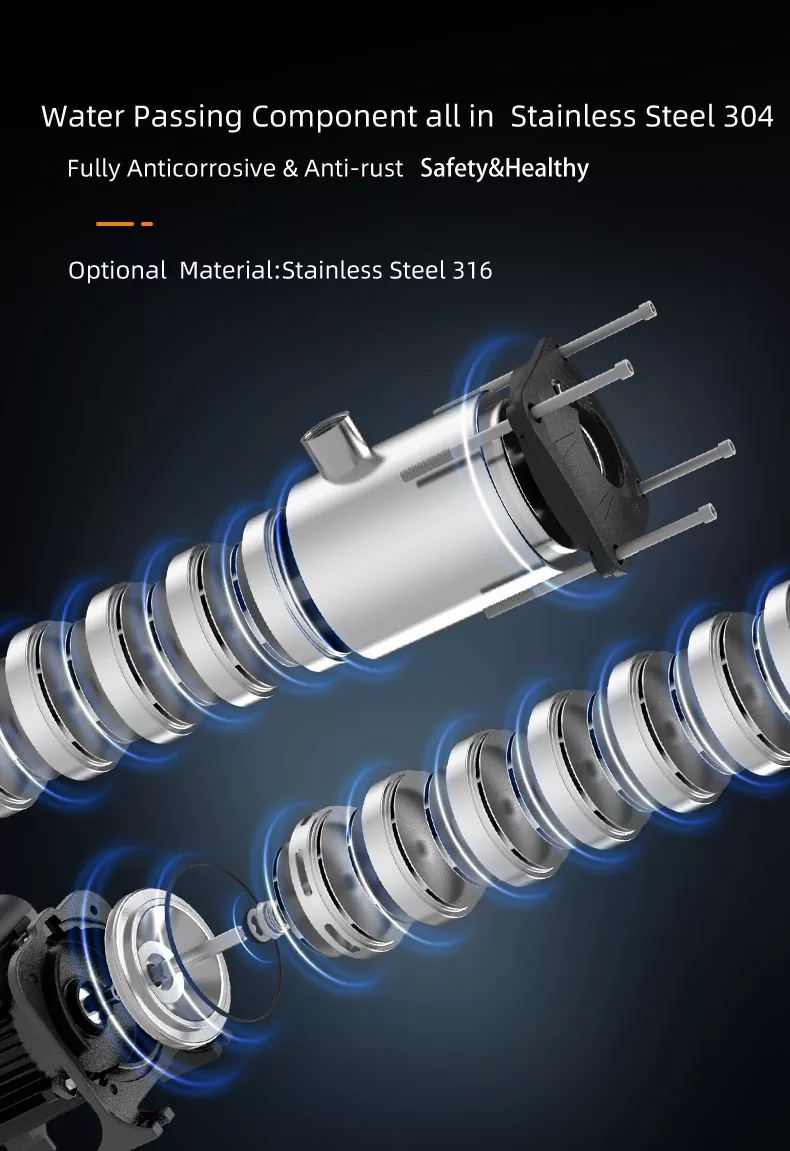

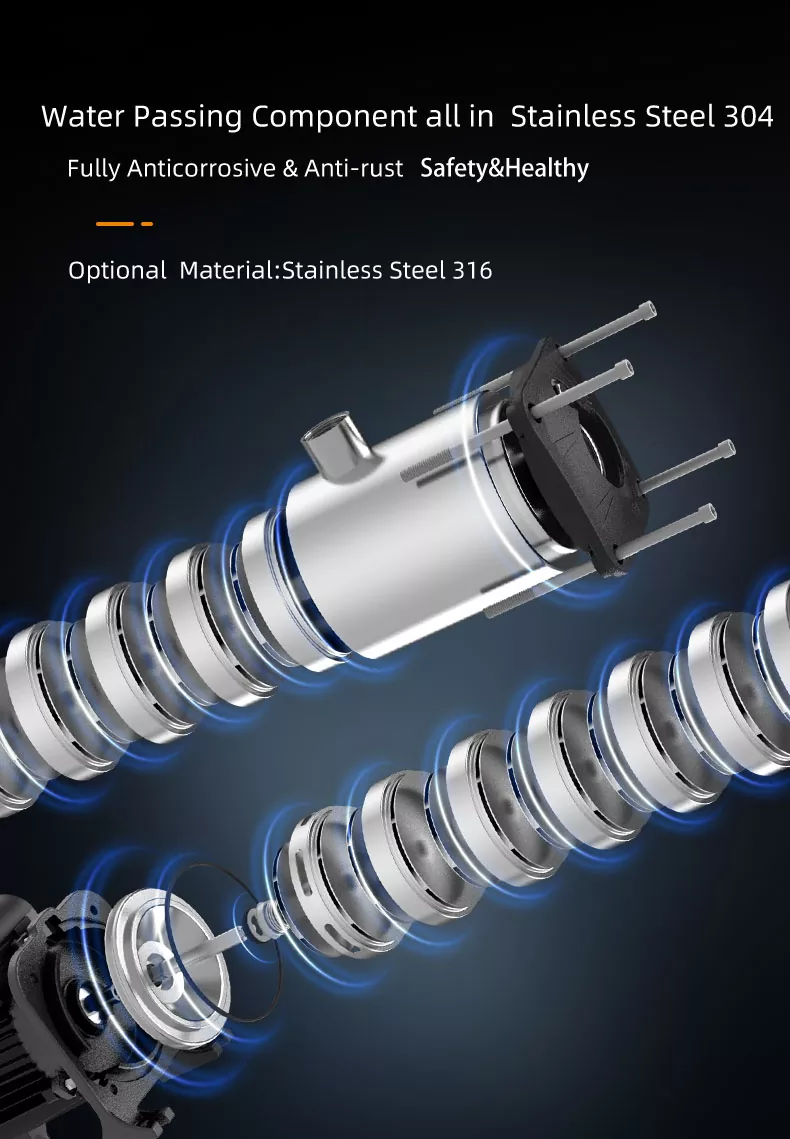

CHM8/IV series smart inverter series horizontal stainless steel multistage centrifugal pump is a relatively mature product on the market currently which is with compact structure and stable working, low operating noise, eiciency up to 44-70%. All water passing components are made of stainless steel AISI304 .It is widely used in
1. Air Conditioning Cooling system & HVAC system
2. Water Treatment: Water Cleaning and Water Filtering
3. Water supply system: Pipeline delivery and building booster
4. Fishery Industry and Agriculture: Aquaculture, Farm sprinkling irrigation &drip irrigation
| ITEM NO. |
Power (kW) |
Max Flow (m³/h) |
Max Head (m) |
Rated Flow@Head |
Impeller |
Dimension L*W*H (mm) |
G.W. (kg) |
| CHM8-3/IV | 1.1 | 13.5 | 31 | 8m³/h@27m | 3 | 510x270x355 | 24.0 |
| CHM8-4/IV | 1.5 | 13.5 | 40 | 8m³/h@35m | 4 | 510x270x355 | 28.1 |
| CHM8-5/IV | 2.2 | 13.8 | 51 | 8m³/h@45m | 5 | 510x270x355 | 31.1 |
1. Liquid Temperature: -15~105°c
2. Maximum Ambient Temperature: +45°C
3. Maximum Pressure: 10 Bar
4. Medium Physical Properties:
● Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)
● Antifreeze Liquid (Main component: glycol)
● Mild corrosive liquid (PH 5- 9)

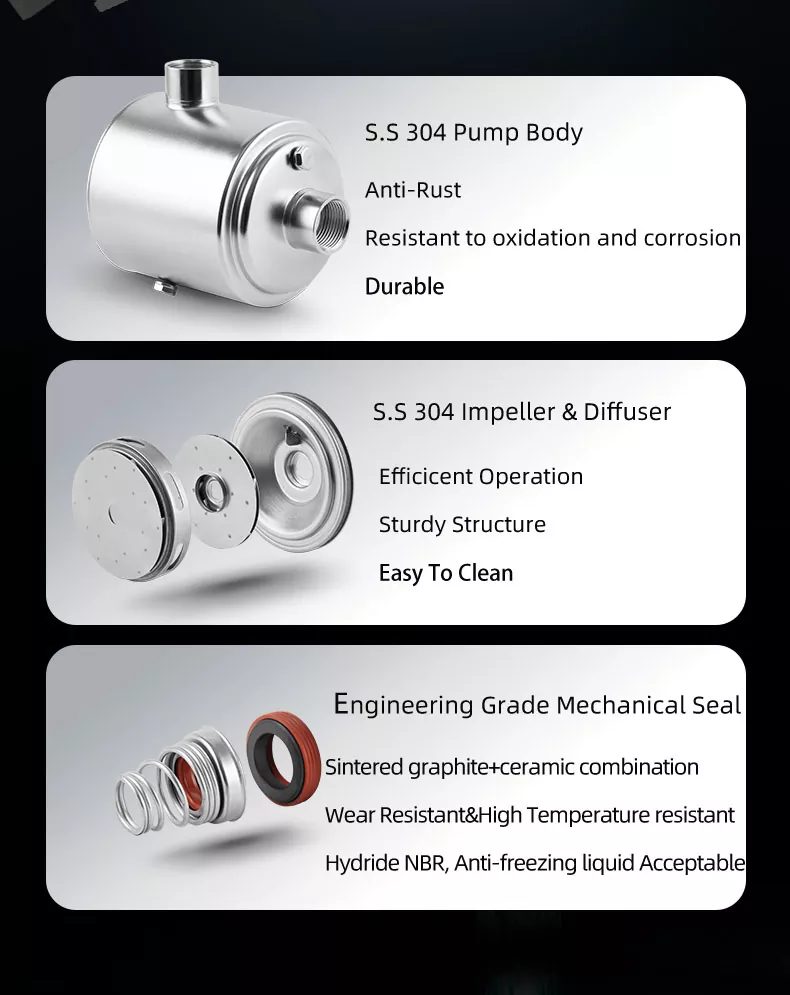

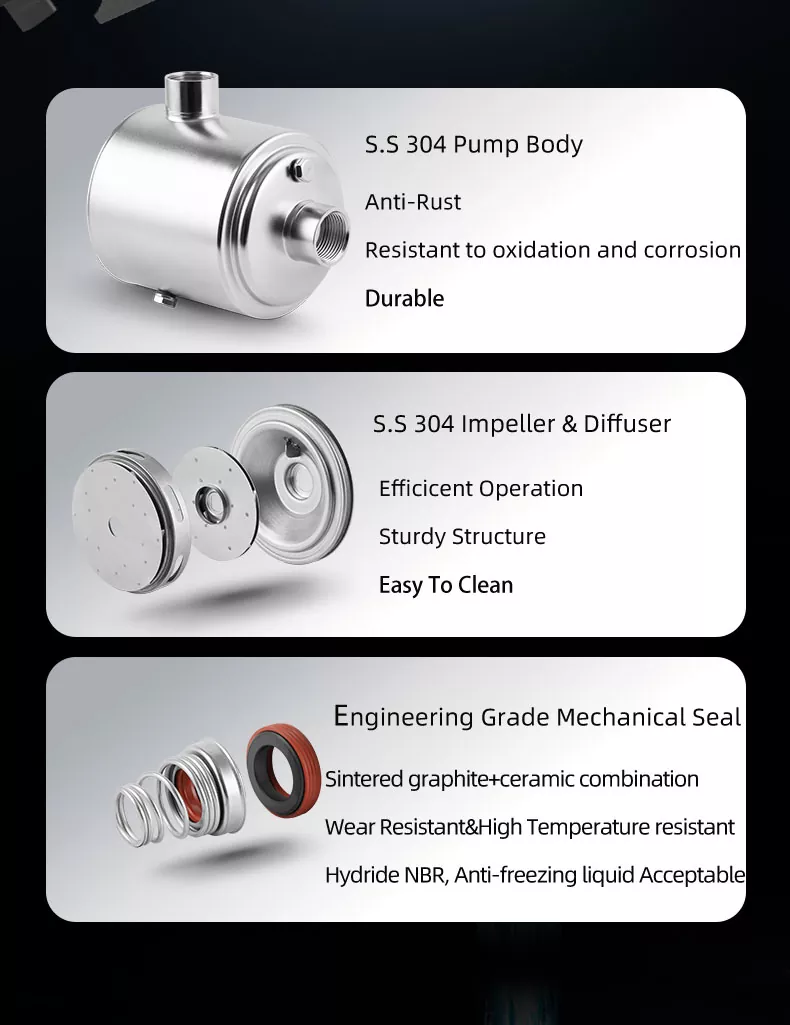

● Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)
5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.
