This pump features corrosion resistance, high efficiency, energy savings, and a compact structure, making it suitable for water supply and industrial liquid transportation.
1.Product Characteristics
Corrosion Resistance
· Water passing components are made of stainless steel, capable of withstanding mildly corrosive media and preventing secondary contamination.
High Efficiency, Energy Saving & Low Noise
· Utilizes an advanced hydraulic model and optimized design, improving efficiency by approximately 15%.
· Mechanical seals made of hard alloy + fluor rubber reduce leakage and energy consumption, ensuring smooth and quiet operation.
Compact Structure
It is a direc-connected design with better cost effective .
2. Main application areas
water supply system
Fire protection system, air conditioning refrigeration cycle water transportation.
Raw water transportation for urban water supply plants.
Industrial liquid transportation
Chemical industry (acid, alkali, solvent transportation).
Manufacturing industry (cooling water, boiler feedwater).
Other scenarios
Agricultural irrigation (drip irrigation, sprinkler irrigation).
Hot spring baths and swimming pool water circulation.
3、 Technical advantages
No casting process: Manufacturing components such as impellers through stamping and welding to improve material utilization and reduce environmental pollution.
Hydraulic balance design: using ball bearings to balance residual axial forces, ensuring smooth operation.
|
Product Name: |

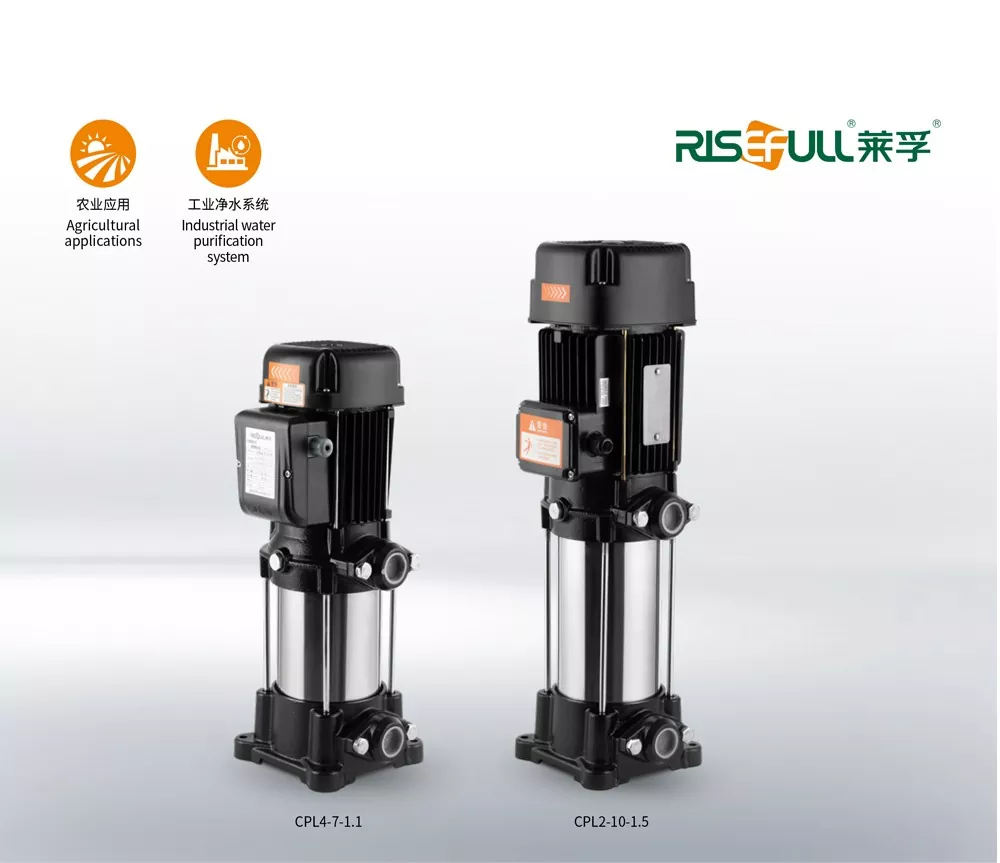

Vertical Multistage Centrifugal Pump |
|
Power |
0.9kW~1.8kW |
|
Max Flow |
5m³/h |
|
Max Head |
64M~123M |
|
Inlet/outlet |
1”X1” |
|
Pump Body |
Stainless Steel 304 |
|
Diffuser |
High Rank Industrial PPO |
|
Bracket Plate |
Cast Iron with Elector-coating |
|
Shaft |
S.S Shaft |
|
Impeller |
Stainless Steel 304 Impeller |
|
Motor |
Copper wire |
|
Color |
Powder Color Coating |
|
MOQ: |
10pcs |
|
Sample Time: |
Within 7 days |
|
Production Time: |
35-40 days after order confirmation |
|
Certificate |
CE |
1. Liquid Temperature: 0~90°C
2. Maximum Ambient Temperature: < 45°
3. .Maximum Pressure: 15 Bar
4. Medium Physical Properties:
● Clear water and similar liquids, coolantsand lubricants (free offibers, with solidparticle diameter < 2mm and proportion≤ 3%)
● Neutral liquids with a PH value = 7±1
5.lf the altitude is higher than 1000 metersand the viscosity of the medium is greaterthan that of clean water, it is necessary toincrease the margin of the water pump toavoid overheating of the motor.
|
Model |
Power |
Q m³/h |
0.5 |
1.0 |
1.5 |
2.0 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
|||||||||||
|
kW |
HP |
||||||||||||||||||||||
|
CPL2-7-0.9 |
0.9 |
1.2 |
H (m)
|
64 |
62 |
59.5 |
57 |
54 |
50 |
45 |
37 |
29.5 |
20 |
||||||||||
|
CPL2-8-1.0 |
1 |
1.5 |
73 |
72 |
68 |
65 |
61 |
56 |
50 |
42 |
32 |
22.5 |
|||||||||||
|
CPL2-9-1.1 |
1.1 |
1.6 |
82 |
78 |
76 |
72 |
67.5 |
62 |
55 |
46 |
35 |
24 |
|||||||||||
|
CPL2-10-1.5 |
1.5 |
2 |
91 |
88 |
85 |
81 |
77 |
71 |
63 |
53 |
40.5 |
27 |
|||||||||||
|
CPL2-11-1.5 |
1.5 |
2 |
104 |
101 |
97 |
93 |
88 |
82 |
74 |
62 |
49 |
32 |
|||||||||||
|
CPL2-12-1.6 |
1.6 |
2.2 |
115 |
110 |
106 |
102 |
97 |
91 |
82 |
69 |
52 |
37.5 |
|||||||||||
|
CPL2-13-1.8 |
1.8 |
2.5 |
123 |
119 |
115 |
111 |
106 |
100 |
90 |
76.5 |
61.5 |
43 |
|||||||||||
|
Motor |
Model |
Dimension(mm) |
Weight (kg) |
||||
|
H1 |
H |
W |
L1 |
L |
|||
|
Three-phase Single-phase |
CPL2-7-0.9 |
194 |
464 |
167.5 |
102 |
186 |
19 |
|
CPL2-8-1.0 |
212 |
482 |
167.5 |
102 |
186 |
19.5 |
|
|
CPL2-9-1.1 |
230 |
500 |
167.5 |
102 |
186 |
20 |
|
|
CPL2-10-1.5 |
248 |
583 |
187 |
103 |
187 |
23 |
|
|
CPL2-11-1.5 |
266 |
601 |
187 |
103 |
187 |
24.5 |
|
|
CPL2-12-1.6 |
284 |
619 |
187 |
103 |
187 |
26 |
|
|
CPL2-13-1.8 |
302 |
637 |
187 |
103 |
187 |
27 |
|
