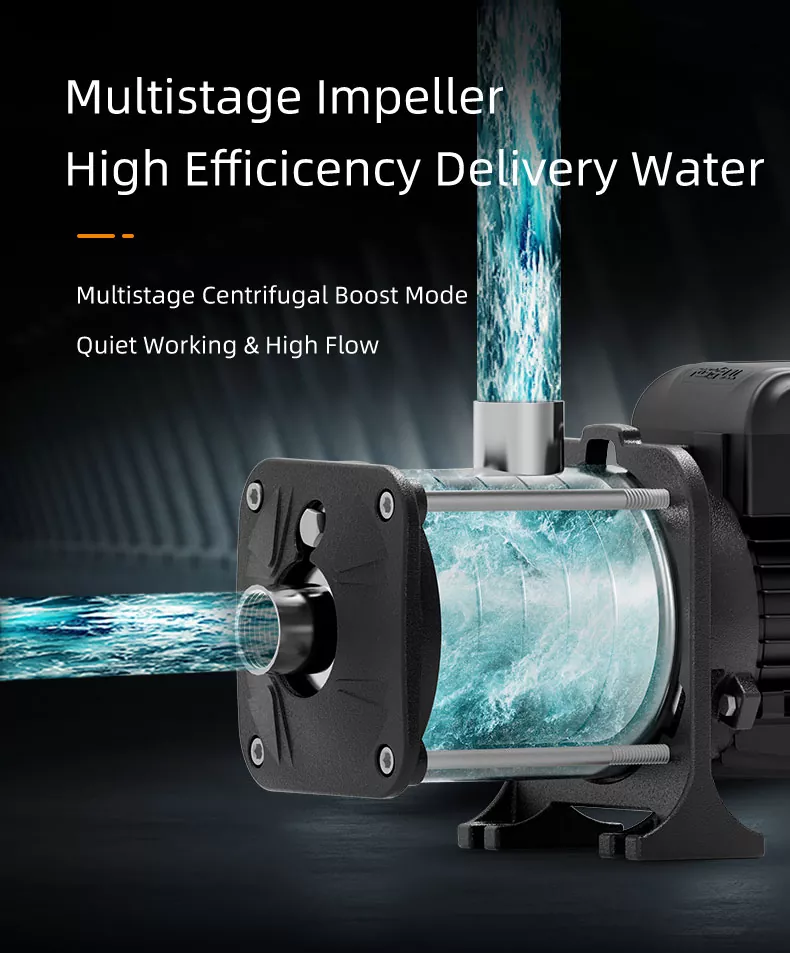

With each stage contributing to the overall pressure output, you can enjoy a steady and powerful flow of water whenever you need it. From watering your garden to running multiple showers simultaneously, this pump delivers a reliable and consistent performance.

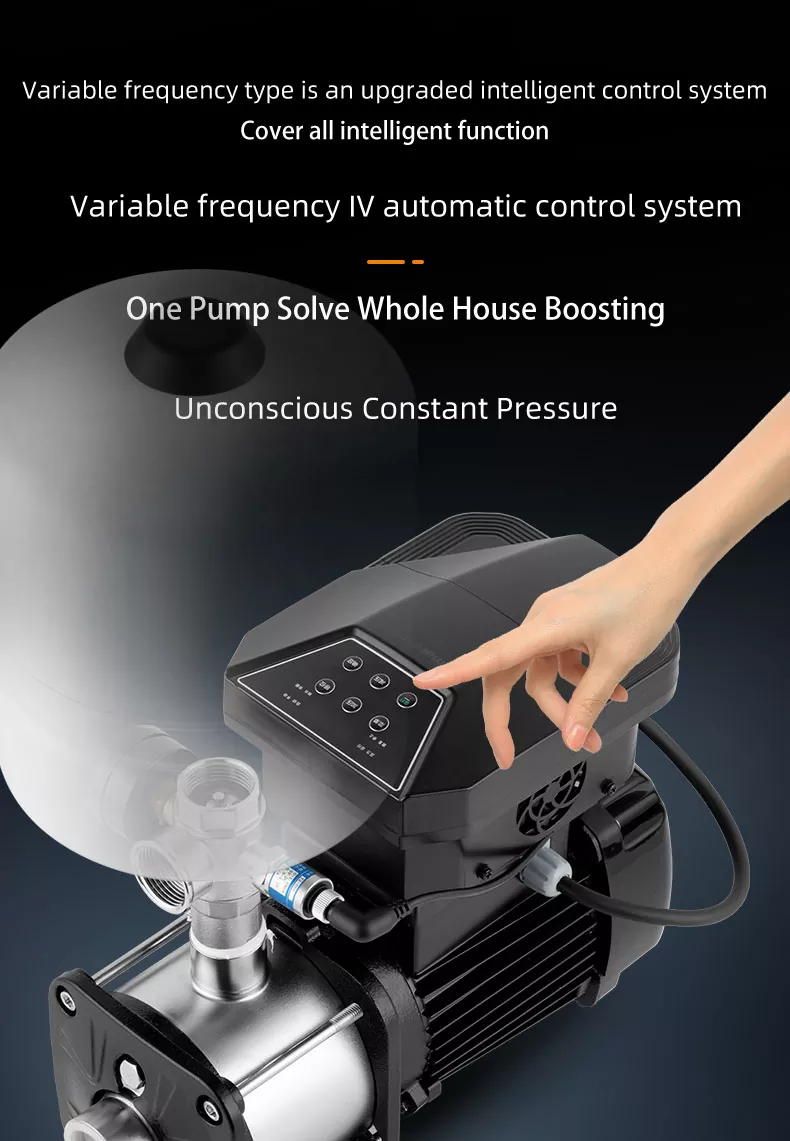

What sets our Smart Multistage Pressure Pump apart is its intelligent features that make operation a breeze. Thanks to its smart technology, you no need to adjust pressure levels.Say goodbye to complicated controls and manual adjustments – this pump takes the guesswork out of pumping water and ensures optimal performance every time.
Durability is key when it comes to water pumps, and our Smart Multistage Pressure Pump is built to last. Constructed from high-quality materials and designed for long-term reliability, this pump is an investment that will serve you well for years to come. Whether you're using it for residential or commercial applications, you can trust that this pump will withstand the test of time.

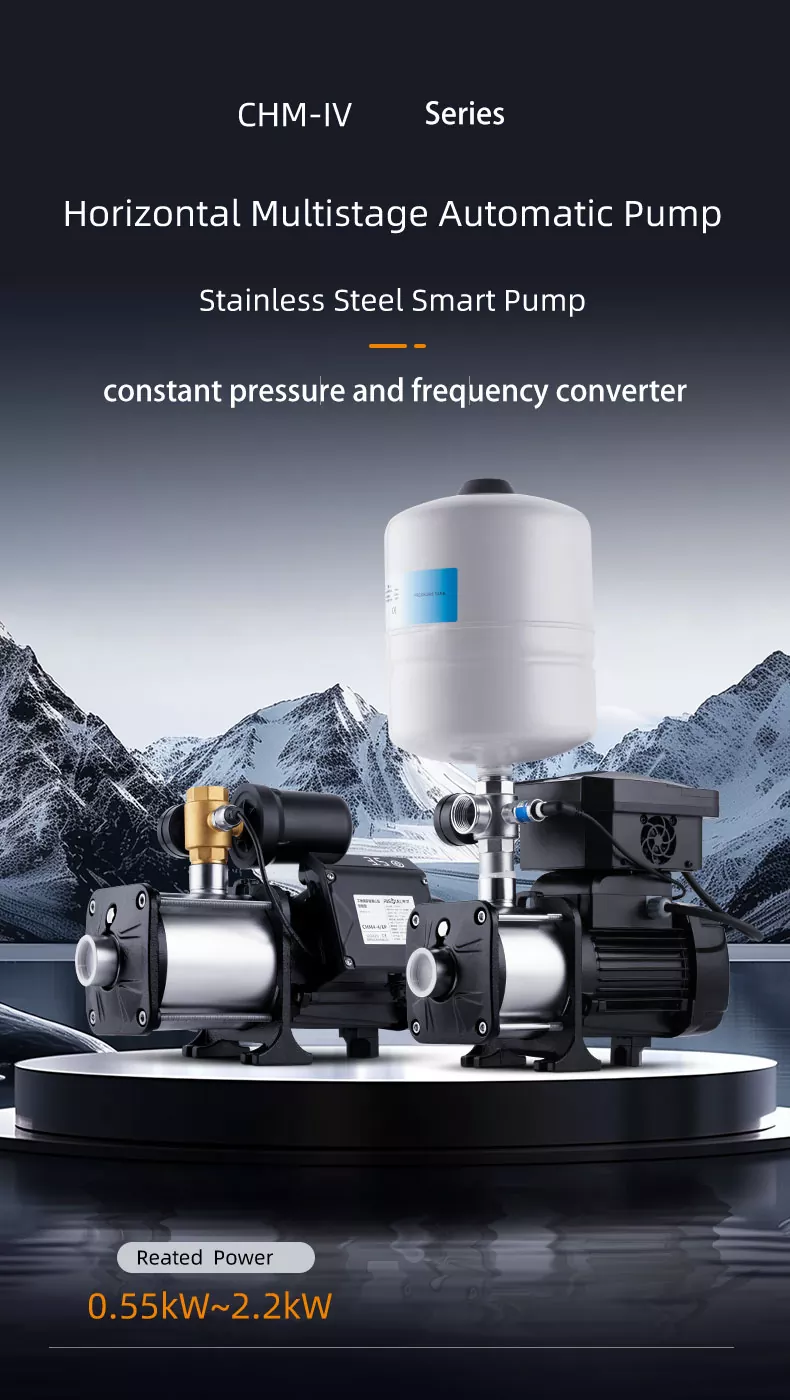

Risefull Rated Flow capcacity 12m³/h Smart Inverter Horizontal Stainless Steel Multistage Centrifugal Pump

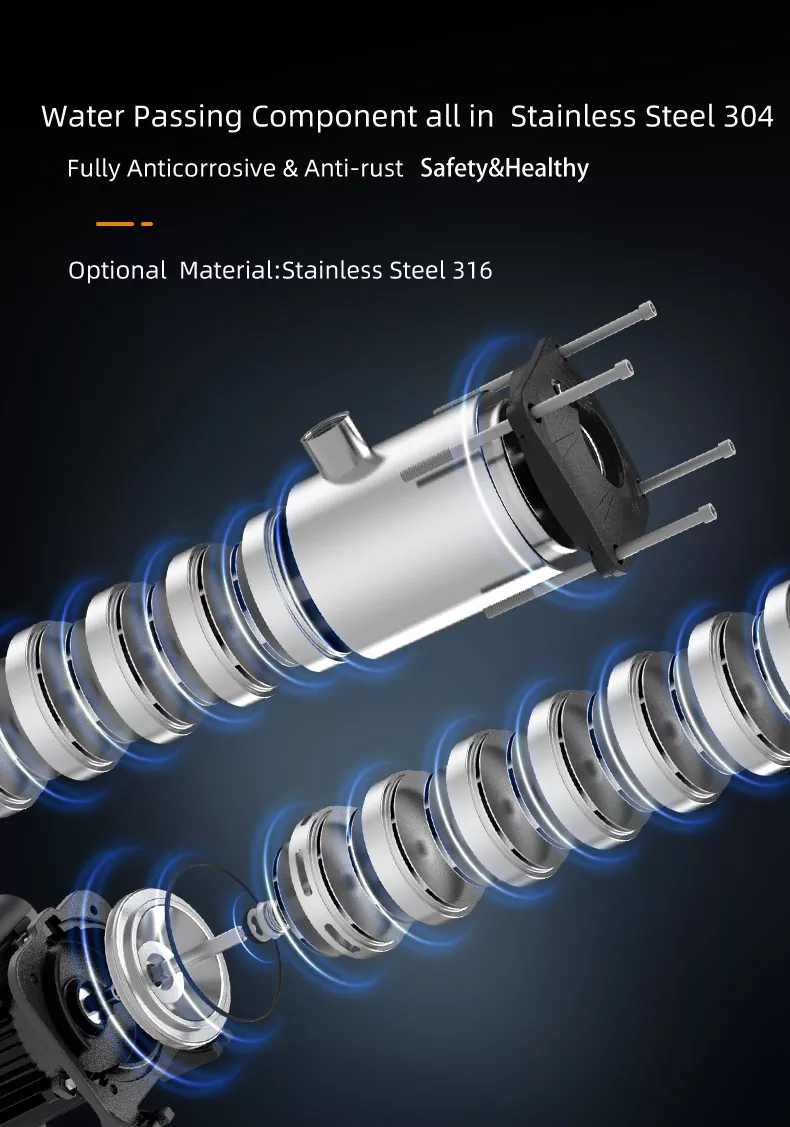

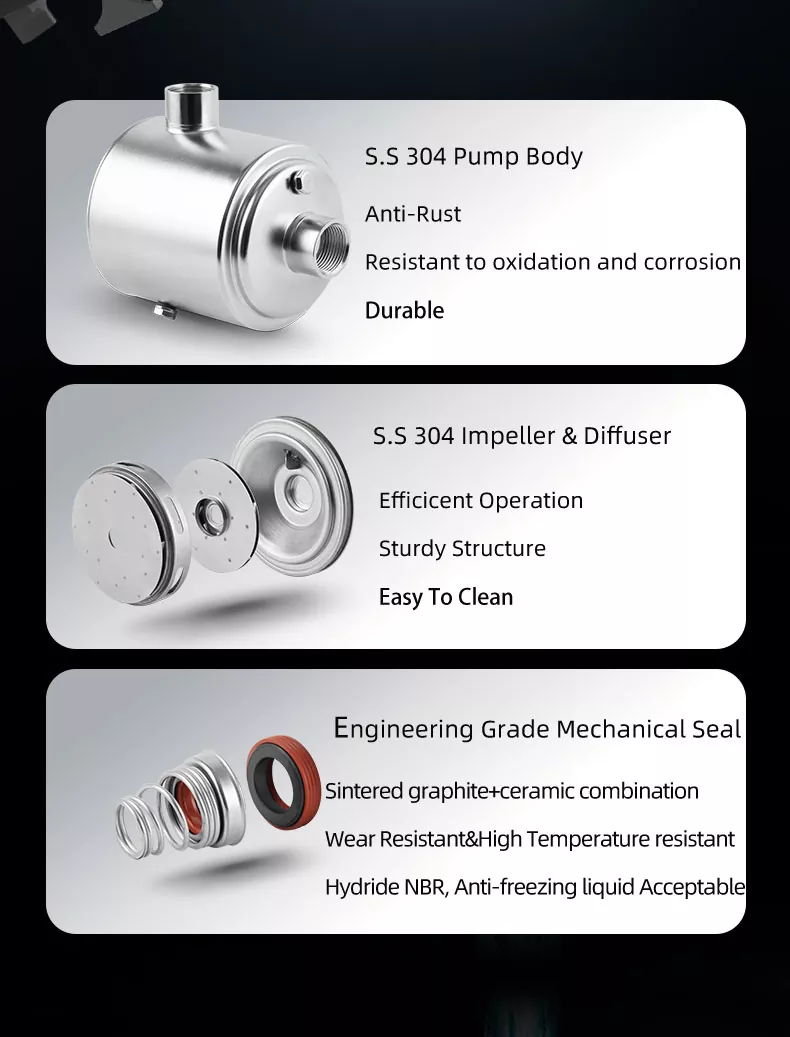

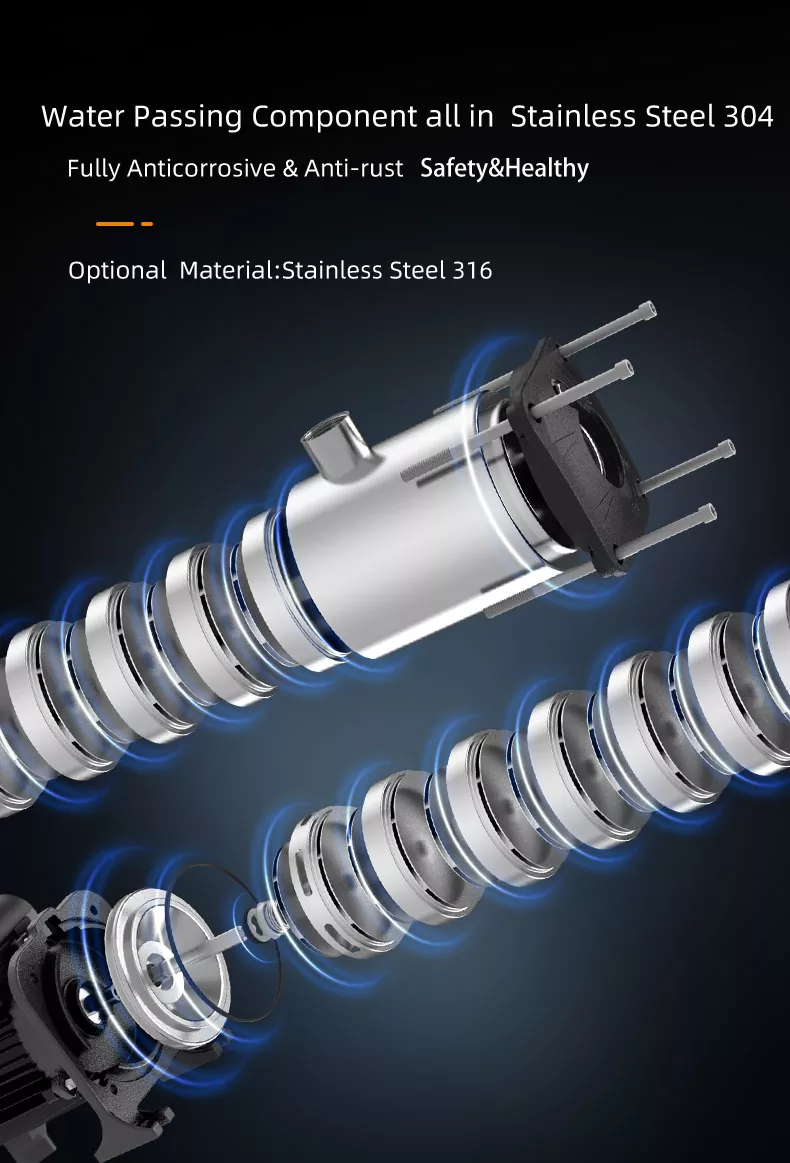

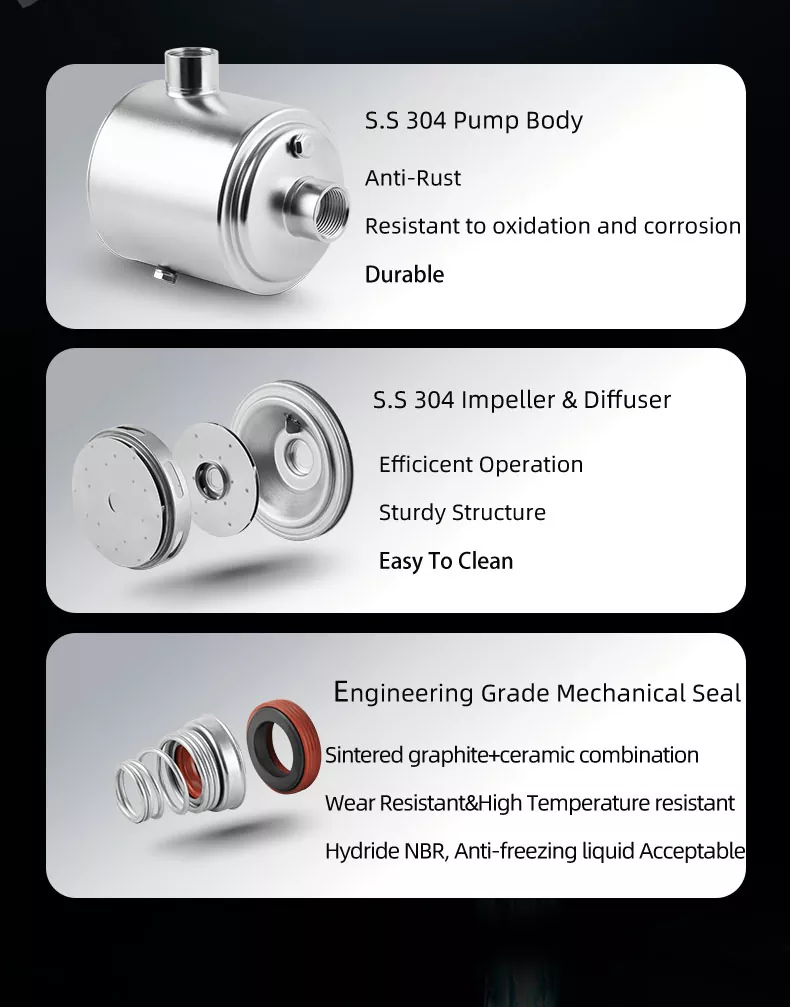

CHM12/IV series smart inverter series horizontal stainless steel multistage centrifugal pump is a relatively mature product on the market currently which is with compact structure and stable working, low operating noise, eiciency up to 44-70%. All water passing components are made of stainless steel AISI304 .It is widely used in
1. Air Conditioning Cooling system & HVAC system
2. Water Treatment: Water Cleaning and Water Filtering
3. Water supply system: Pipeline delivery and building booster
4. Fishery Industry and Agriculture: Aquaculture, Farm sprinkling irrigation &drip irrigation
| ITEM NO. |
Power (kW) |
Max Flow (m³/h) |
Max Head (m) |
Rated Flow@Head |
Impeller |
Dimension L*W*H (mm) |
G.W. (kg) |
| CHM12-2/IV | 1.2 | 17.5 | 25 | 12m³/h@19m | 2 | 510x270x355 | 26.7 |
| CHM12-3/IV | 1.8 | 17 | 37 | 12m³/h@26m | 3 | 510x270x355 | 28.1 |

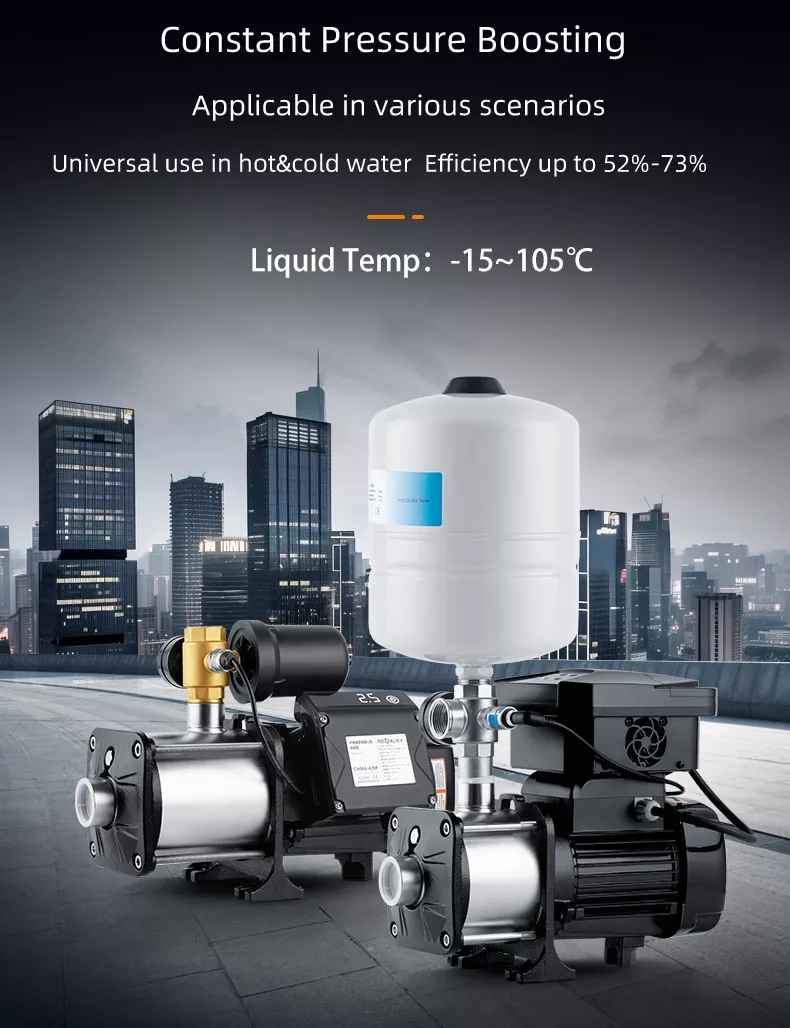

1. Liquid Temperature: -15~105°c
2. Maximum Ambient Temperature: +45°C
3. Maximum Pressure: 10 Bar
4. Medium Physical Properties:
● Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)
● Antifreeze Liquid (Main component: glycol)
● Mild corrosive liquid (PH 5- 9)
● Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)
5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.
