Risefull Rated Flow 2 M³/h Direct Connection Stainless Steel Vertical Multistage Centrifugal Pump High Pressure Electric

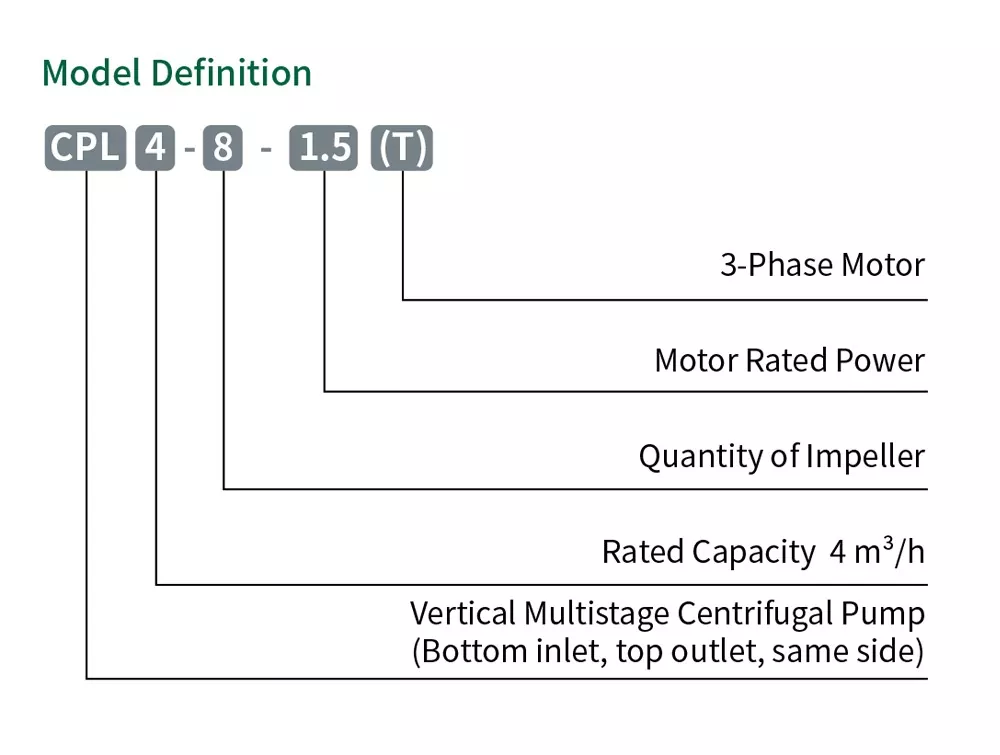

Model:CPL2-7-0.9/CPL2-8-1.0/CPL2-9-1.1/CPL2-10-1.5/CPL2-11-1.5/CPL2-12-1.6/CPL2-13-1.8

Risefull is a an innovative and professional water pump manufacturer and supplier in China. We have been specialized in electric water pump for many years. With years of experience in household water pump ,industrial water pump and pump accessories ,Risefull water pump can meet many applications .For the household pump ,we can cover many applications such as ,pipeline booster ,downward booster ,water tower filling ,shallow well pumping and deep well pump .For the industrial water pump ,we can supply centrifugal pump ,peripheral water pump,self-priming peripheral water pump ,high temperature water pump ,self-priming jet pump ,GD in line pump,stainless steel multistage centrifugal water pump .

Send Inquiry

Product Description

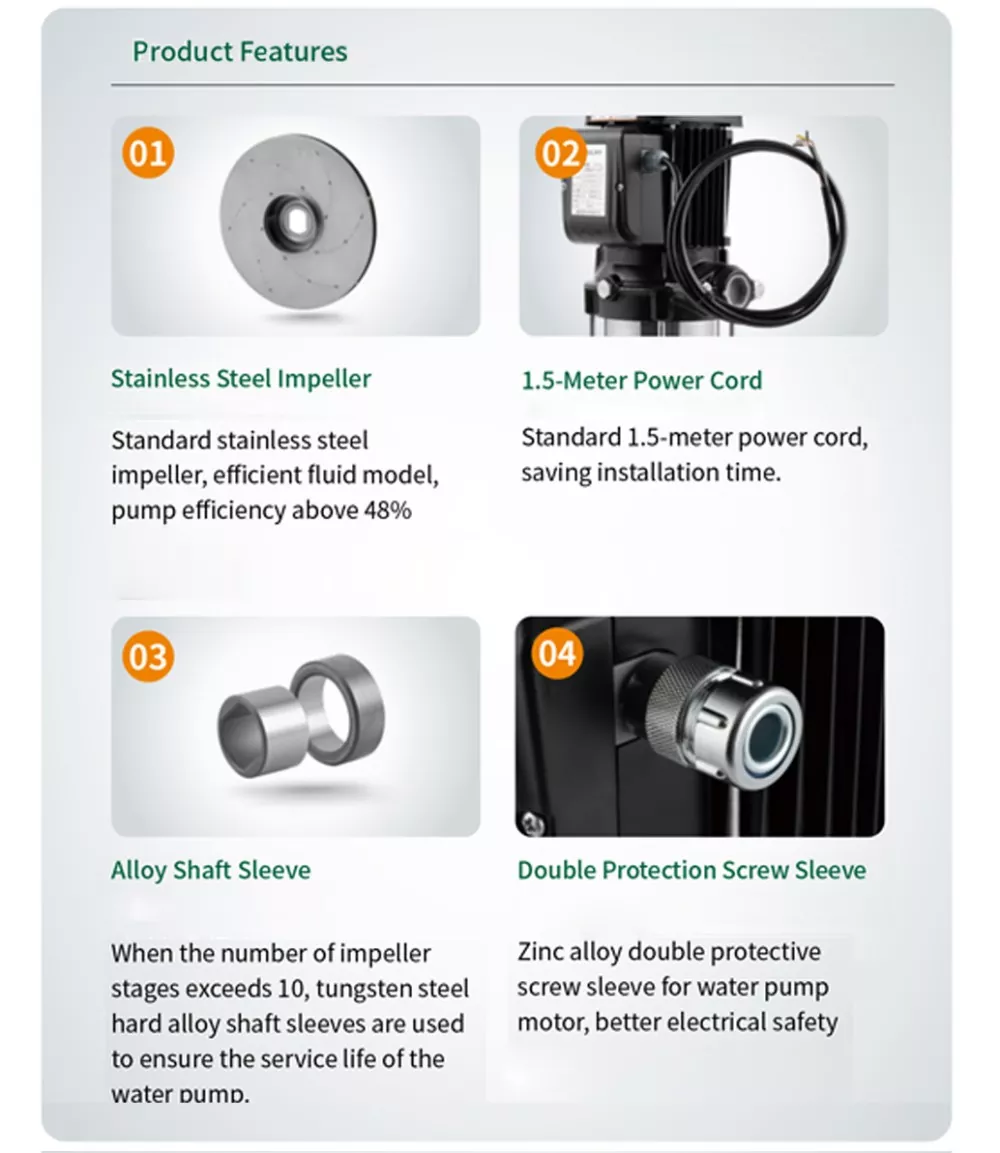

The following is an introduction of CPL Series .It is the vertical multistage centrifugal pump which is a new type of pump with a direct-connected design. comparing to the coupled-connected multistage water pump, it is with better cost effctive. Withstainless steel impellers and engineering PPO diffusers, basing onthe high efficient fluid model, the pump efficiency is above 48%

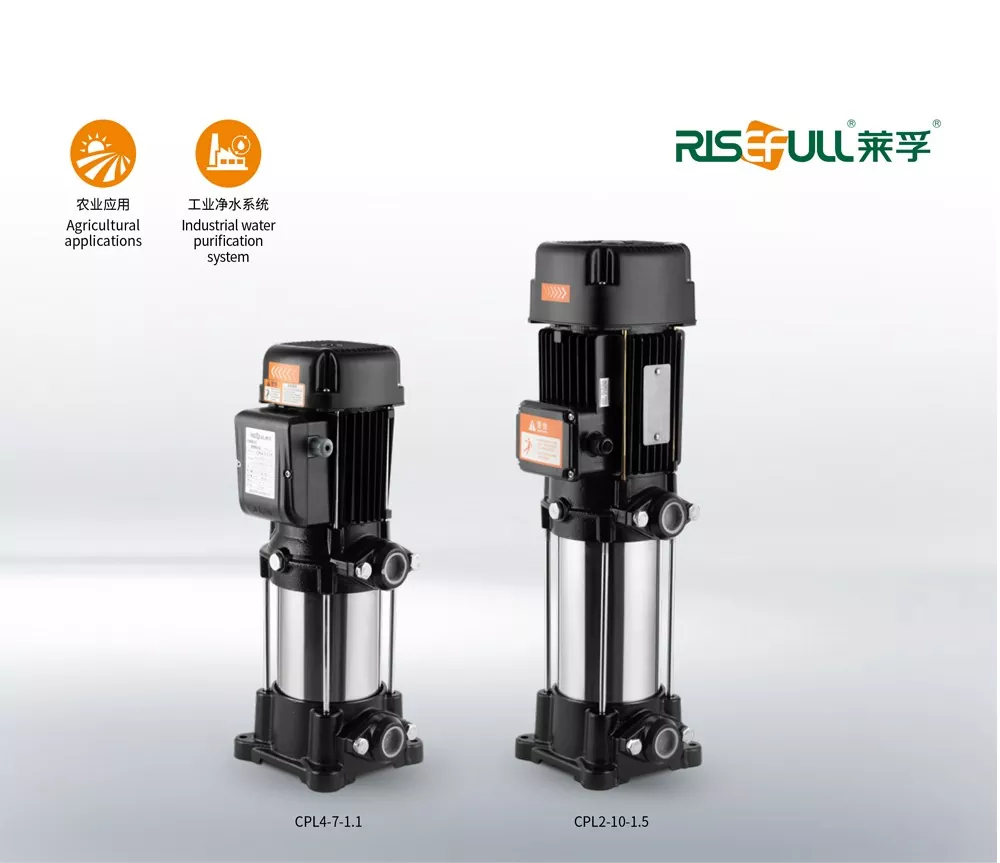

CPL is widely used in:

--1.Agricultural sprinkling irrigation and drip irrigation

--2.Industrial water purification systembigger flow centrifugal water pump .

Hope to help you better understand Risefull Indutrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together

Product Specification:

Product Name:	Vertical Multistage Centrifugal Pump
Power	0.9kW~1.8kW
Max Flow	5m³/h
Max Head	64M~123M
Inlet/outlet	1”X1”
Pump Body	Stainless Steel 304
Diffuser	High Rank Industrial PPO
Bracket Plate	Cast Iron with Elector-coating
Shaft	S.S Shaft
Impeller	Stainless Steel 304 Impeller
Motor	Copper wire
Color	Powder Color Coating
MOQ:	10pcs
Sample Time:	Within 7 days
Production Time:	35-40 days after order confirmation
Certificate	CE

Product Details

Working Condition

1. Liquid Temperature: 0~90°C

2. Maximum Ambient Temperature: < 45°

3. .Maximum Pressure: 15 Bar

4. Medium Physical Properties:

● Clear water and similar liquids, coolantsand lubricants (free offibers, with solidparticle diameter < 2mm and proportion≤ 3%)

● Neutral liquids with a PH value = 7±1

5.lf the altitude is higher than 1000 metersand the viscosity of the medium is greaterthan that of clean water, it is necessary toincrease the margin of the water pump toavoid overheating of the motor.

Performance Data

Model	Power		Q m³/h		0.5		1.0		1.5		2.0	2.5		3.0		3.5		4.0		4.5		5.0
	kW	HP
CPL2-7-0.9	0.9	1.2	H (m)	64		62		59.5		57		54	50		45		37		29.5		20
CPL2-8-1.0	1	1.5		73		72		68		65		61	56		50		42		32		22.5
CPL2-9-1.1	1.1	1.6		82		78		76		72		67.5	62		55		46		35		24
CPL2-10-1.5	1.5	2		91		88		85		81		77	71		63		53		40.5		27
CPL2-11-1.5	1.5	2		104		101		97		93		88	82		74		62		49		32
CPL2-12-1.6	1.6	2.2		115		110		106		102		97	91		82		69		52		37.5
CPL2-13-1.8	1.8	2.5		123		119		115		111		106	100		90		76.5		61.5		43

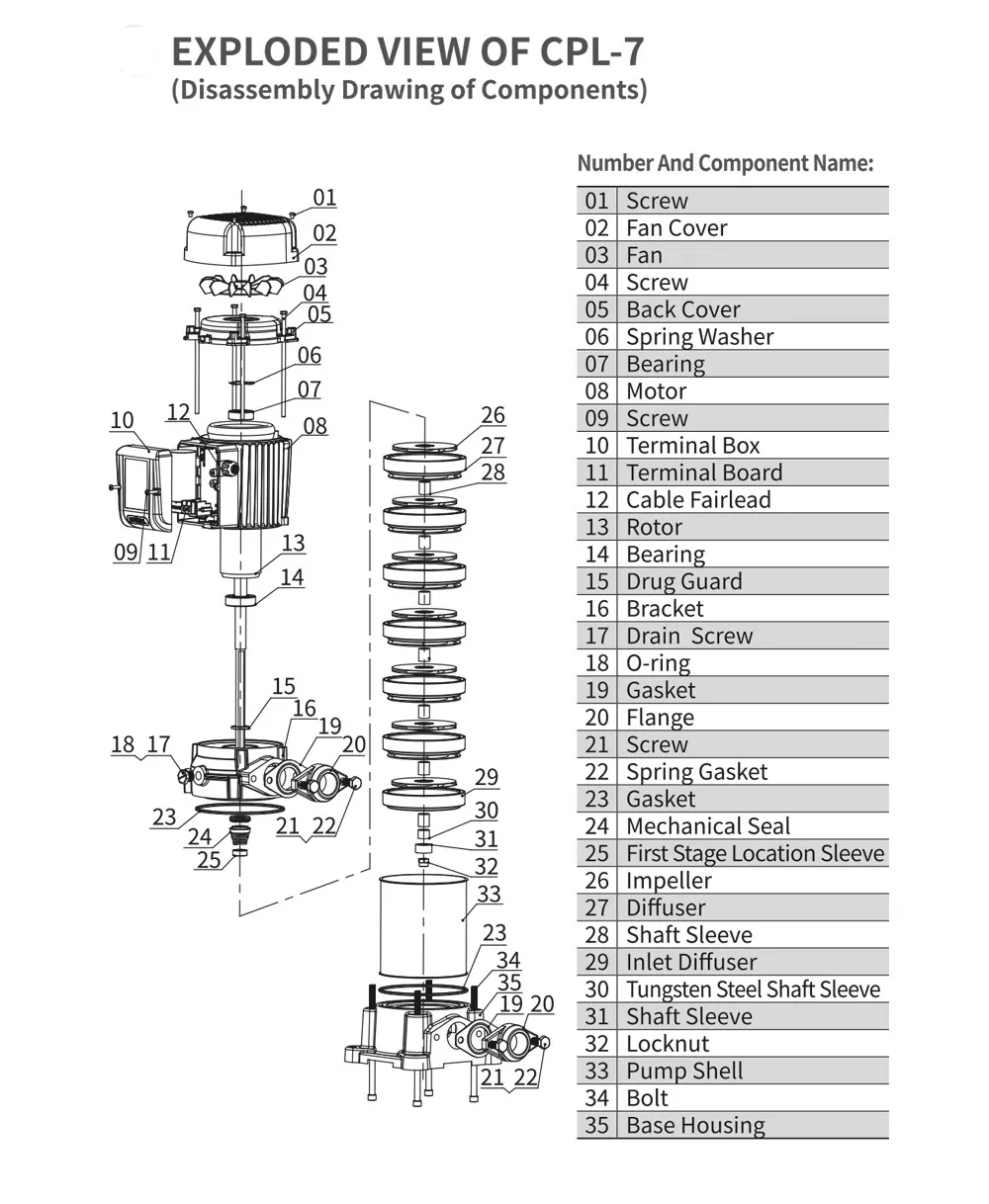

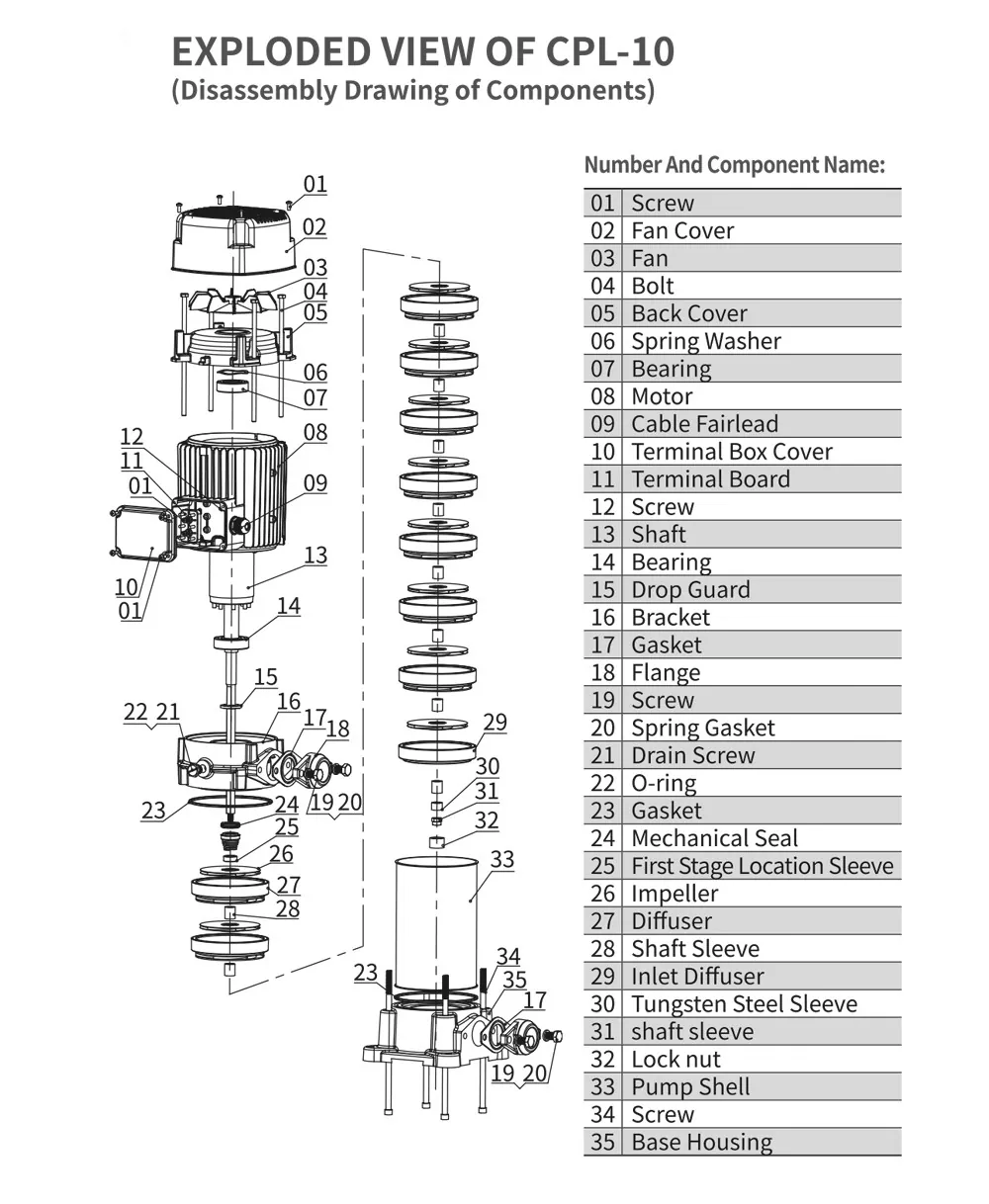

Exploded View Of Main Component

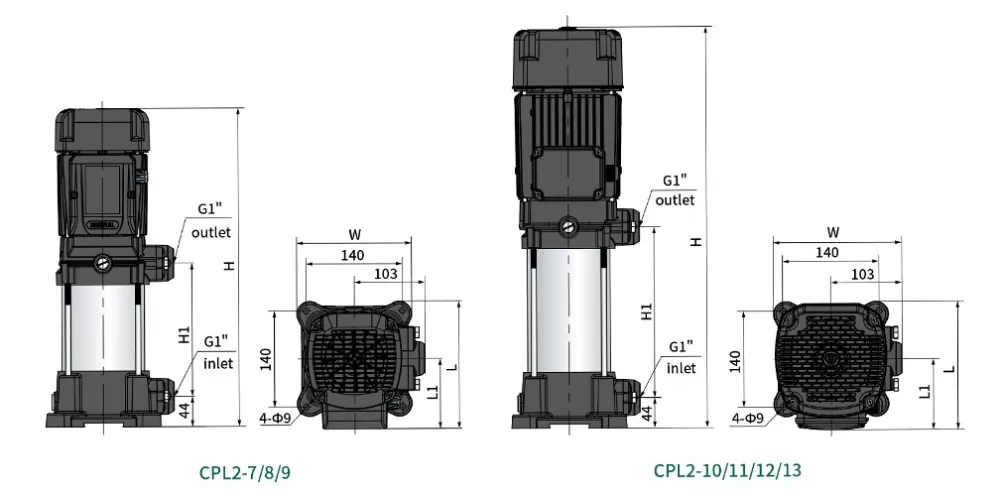

Installation Dimensions

Motor	Model	Dimension(mm)					Weight (kg)
Motor	Model	H1	H	W	L1	L	Weight (kg)
Three-phase Single-phase	CPL2-7-0.9	194	464	167.5	102	186	19
	CPL2-8-1.0	212	482	167.5	102	186	19.5
	CPL2-9-1.1	230	500	167.5	102	186	20
	CPL2-10-1.5	248	583	187	103	187	23
	CPL2-11-1.5	266	601	187	103	187	24.5
	CPL2-12-1.6	284	619	187	103	187	26
	CPL2-13-1.8	302	637	187	103	187	27
